Honda Wave 110i User Manual

Tyre Puncture u Removing Wheels
82
Troubleshooting
❙
Front Wheel
Removal
1. Park your motorcycle on its centre stand
on a firm, level surface.
2. Raise the front wheel off the ground by
placing a support block under the engine.
3. Remove the speedometer cable by
pushing the tab.
4. Remove the front axle nut cap.
5. Remove the front axle nut.
6. Remove the front axle shaft, front wheel
and side collar.
u Do not pull the brake lever while the
wheel is removed.
u Take care to prevent the brake caliper
from scratching the wheel during
removal.
u Avoid getting grease, oil, or dirt on the
disc or pad surface.

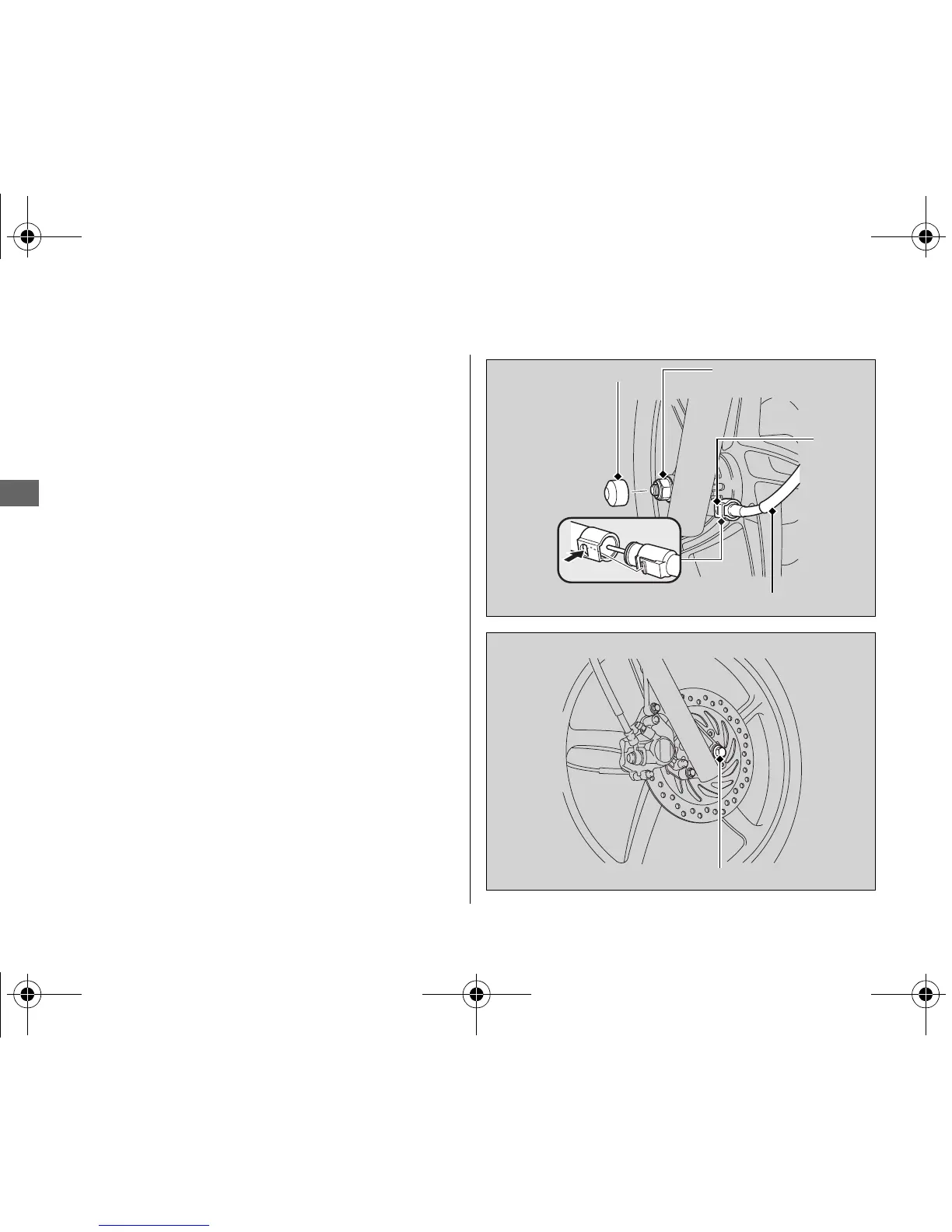

Front axle nut cap
Speedometer cable
Front axle nut
Tab
Front axle shaft
