1.

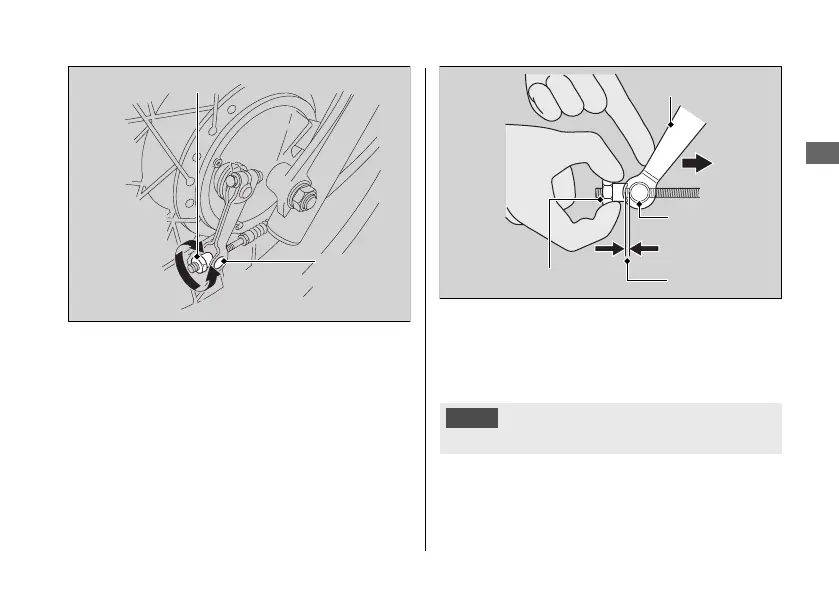

Adjust by turning the front brake
adjusting nut a half-turn at a time.
2.
Apply the brake several times and check
for free wheel rotation after the brake
lever is released.
3.
Push the brake arm to confirm that there
is a gap between the front brake
adjusting nut and brake arm pin.
After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
20181207113539_32KVMC000_eng_BOOK Page 66 Friday, December 07 2018 11:40:26 JST
Brakes u Adjusting the Front Brake Lever Freeplay
Maintenance
63
Decrease
Freeplay
Increase
Freeplay
Brake arm
pin
Adjusting nut
Brake arm
Push
Brake arm
pin
GapAdjusting nut
