After adjustment, confirm the freeplay of the
brake pedal.
Make sure the brake rod, brake arm, spring
and fastener are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
Adjusting the Front Brake Lever
Freeplay
Adjust the freeplay of the brake lever with the
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your dealer.
20181207113539_32KVMC000_eng_BOOK Page 65 Friday, December 07 2018 11:40:26 JST
Brakes u Adjusting the Front Brake Lever Freeplay
Maintenance
62

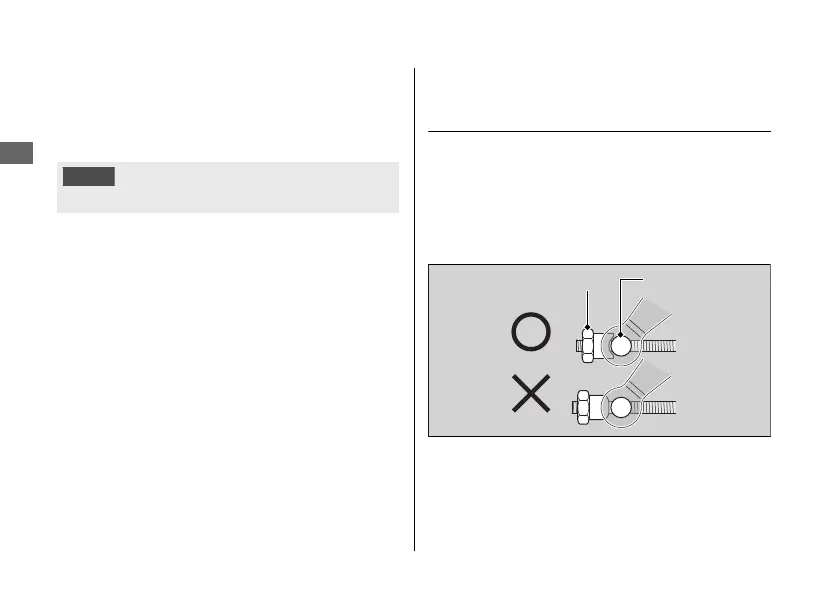

Brake arm pinAdjusting nut
