1.

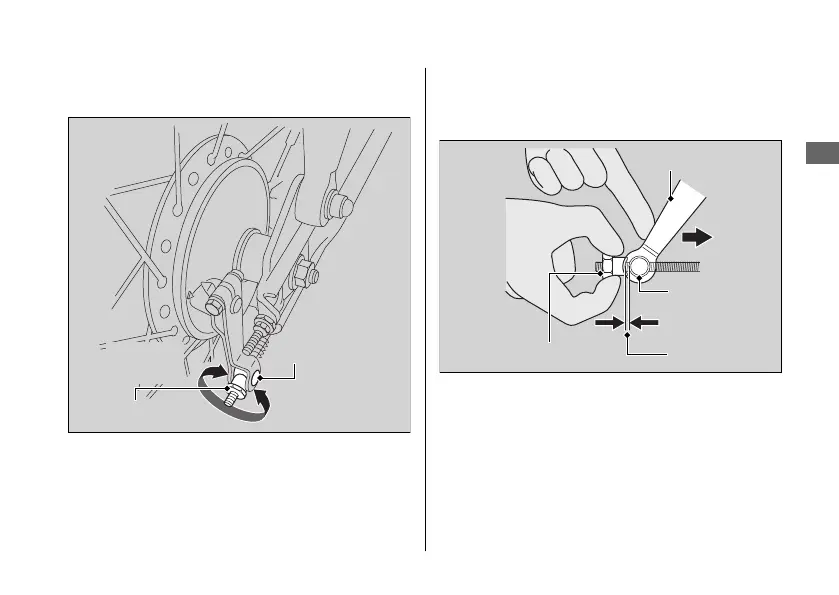

Adjust by turning the rear brake adjusting
nut a half-turn at a time.
2.
Apply the brake several times and check
for free wheel rotation after the brake
pedal is released.
3.
Push the brake arm to confirm that there
is a gap between the rear brake adjusting
nut and brake arm pin.
20181207113539_32KVMC000_eng_BOOK Page 64 Friday, December 07 2018 11:40:26 JST
Brakes u Adjusting the Rear Brake Pedal Freeplay
Maintenance
61
Continued
Decrease
Freeplay
Increase
Freeplay
Brake arm pin
Adjusting nut
Brake arm
Push
Brake arm
pin
GapAdjusting nut
To Next Page
