HE360 HUMIDIFIER AND INSTALLATION KIT
11 69-2629EF—09

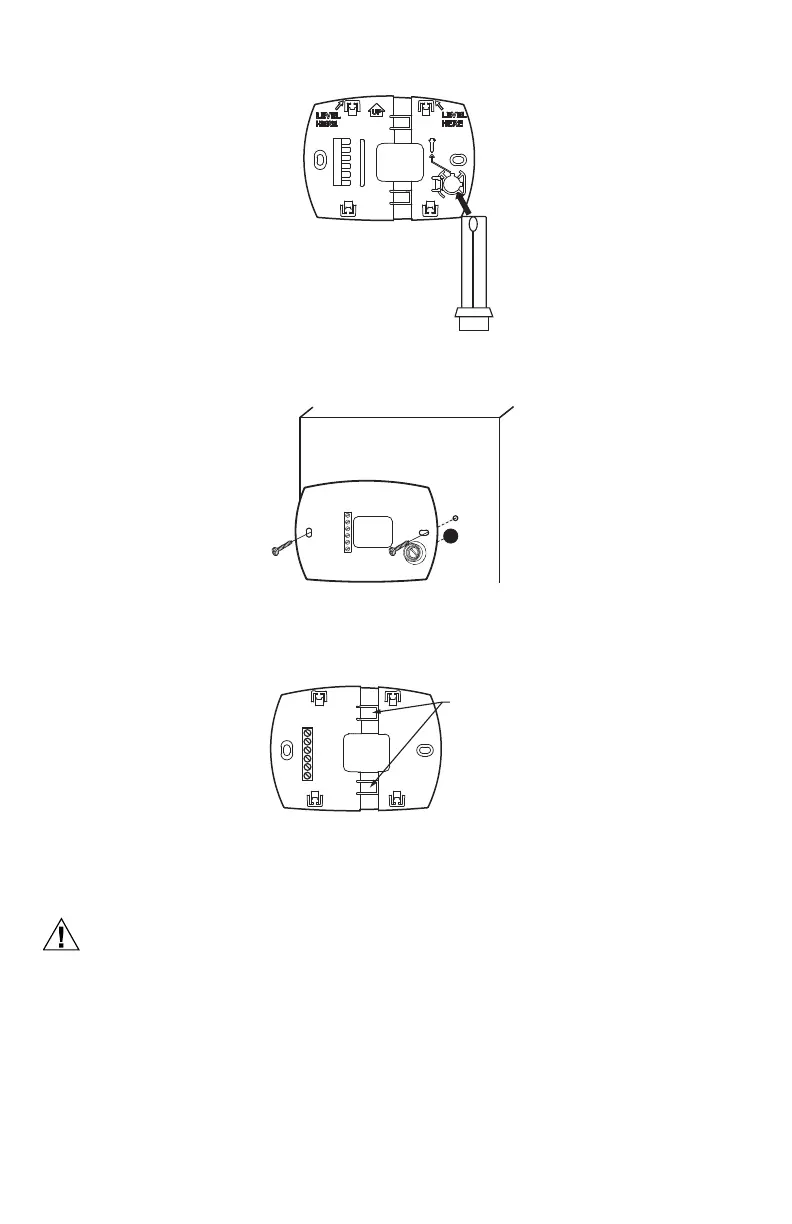

4. Insert the duct tube. Insert the duct tube through the wallplate before securing to the duct.
Fig. 15.
5. Secure the wallplate. Secure the wallplate to the duct with sheet metal screws (provided).
Fig. 16.
6. Run wires through the back plate. Run wires through the top or bottom channel on the back plate when
ductmounted. If installing like a thermostat on a wall, run the wires through the back.
Fig. 17.
WIRING
Hazardous Voltage.
Can cause personal injury or equipment damage.
Disconnect power supply before installing or servicing equipment.
IMPORTANT
All wiring must comply with applicable local code, ordinances and regulations.
Wire the humidifier solenoid valve, pressure switch, and humidistat. See Fig. 18.
M34610A
RUN WIRES
THROUGH THE
TOP OR BOTTOM
CHANNEL
C
R
U
U
S
S
To Next Page
