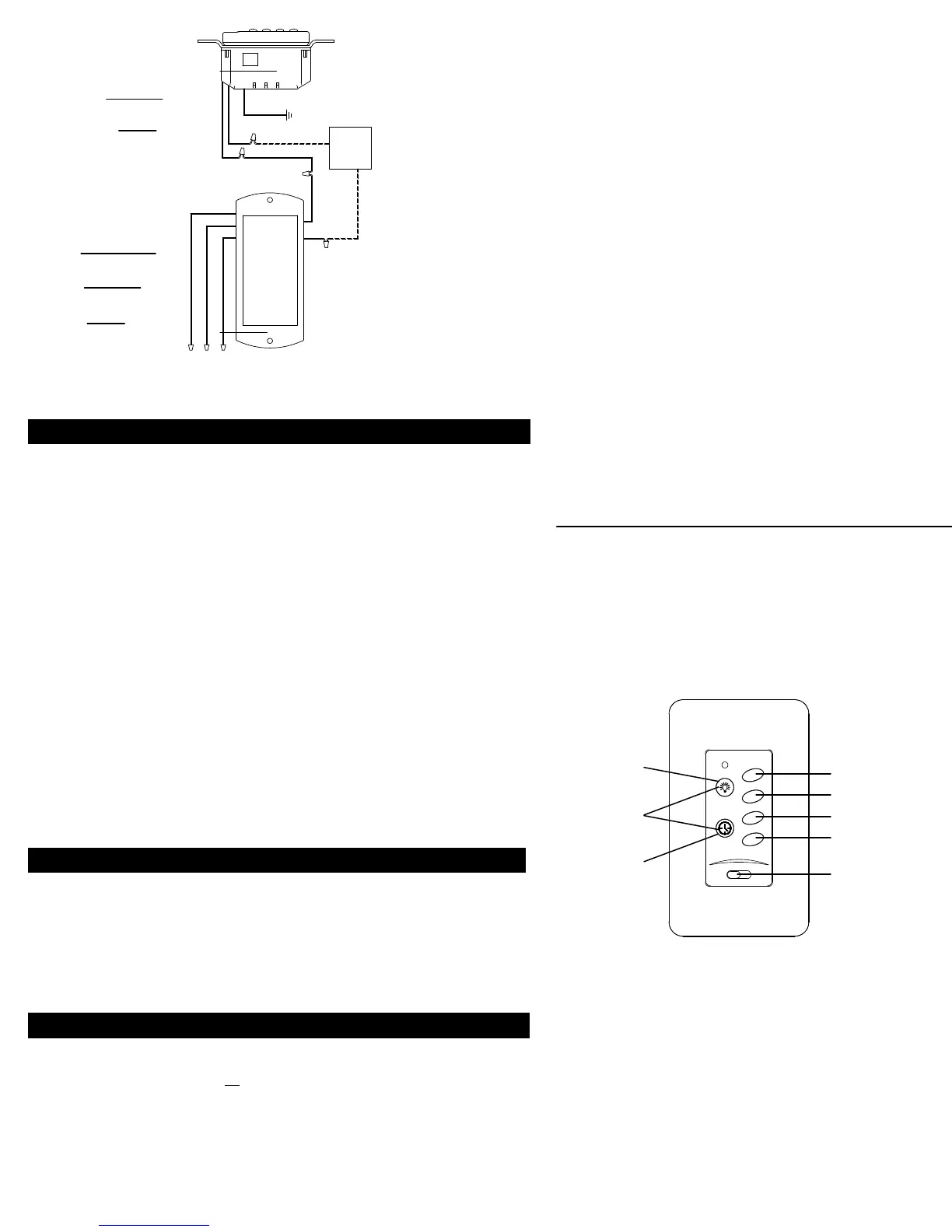

FIG3
WIRINGDIAGRAM

WALL CONTROL OPERATION (FIG.4) )

High/Medium/LowSpeed–Taplightlytoturnthefanonathigh,mediumorlow
speedrespectively .

FanOff–Taplightlytothe fanoff.

Light–Taplightlytoturnlightonoroff.

NOTE:Compatibleforusewithcompactfluorescentbulbs.

WalkAwayLightDelay–Taponce‐thelightandfanturnoffafter1minute.Light
onthefanblinksonceto
confirmfunctionisactive.Pressanybuttontocancelfunction.

HomeShield–PressandholdtheLightandDelaybuttonsfor3seconds.Lightonthe
fanblinkstwotimestoconfirmfunctionisactive.Fanwillbeoffandthelightwill
randomlyturnonandoffwhile
youareawa y.Todeactivatepressanybuttononce.













TROUBLE SHOOTING G
• Reviewreceiverwiring–isitwiredcorrectlyandreceivingpower?
• IsthefanspeedcontrolonHIandlightswitchintheONposition?
• Isthepoweron/offswitchonwallcontrolintheONposition?
• Arealltwobatteriesnewandfullycharged?
• Learning
processbetweenfanandtransmittermaynothavebeensuccessful–see
step2underactivatingthelearningprocess
• Won’toperateatadistance–makesureantennawireisvisible andnotobstructed

WARRANTY G
This product is warranted to be free from defects in material and workmanship, under normal use and
maintenance, for a period of (1) year from the date of purchase. This warranty shall not cover any
removal or reinstallation costs, and shall not
apply to: (i) cosmetic damage, such as scratches, nicks
and dents; (ii) any alteration or improper repair, maintenance, handling, or installation; (iii) the
combination of the product with other systems or components; (iv) consumable parts, such as batteries,
including any deterioration or damage to the product caused by the use of faulty batteries; (v) damage
caused by accident, abuse, misuse, water, flood, fire, or other acts of nature
or external causes; (vi) damage caused by service performed by anyone
who is not an authorized service provider; or (vii) damage to a product that
has been modified or altered. Your sole and exclusive remedy for a breach
of warranty shall be replacement of the product. Alternatively, you may
return your product to the
retailer from which you made your purchase in accordance with applicable
return policies.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY
ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS
WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL
ANY PARTY BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT,
OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE
USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM
DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE
ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
To obtain warranty service, please call the customer service number below.
One of our customer
service representatives will assist you in determining whether you have a
warranty claim and, if so,
how to return your product. If you return your product for a warranty claim,
please securely pack
your product and include a copy of the original sales receipt, which is
required as the proof of
purchase for all warranty claims. You shall be responsible for shipment and
assume all costs and
risks associated with any product return
.
TheHoneywellTrademarkisusedunderlicensefromHoneywell
InternationalInc.HoneywellInternationalInc.makesnorepresentations
orwarrantieswithrespecttothisproduct.
Thisproductismanufacturedfor:
HongKongChinaElectricApplianceManufactureCo.,Ltd.
3059ForestHillIreneRd,Ste103
Germantown,TN38138
1‐877‐580‐4359


ONOFF
H
M
L
OFF

FIG4
WALLCONTROLOPERATION


Walk Away Light Delay
Home Shield
Light
High Speed
Medium Speed
Low Speed
Fan Of
f
Power On/Of
f
WALL CONTROL
GROUND / EARTH
RECEIVER
A
C
INPUT
A
C POWER
(WHITE) N
LIGHT
(BLUE)
MO
T
OR
(BLACK)
MOTOR
(WHITE)
TO CEILING FAN
A
C POWER
(BLACK)
RECEIVER LIVE
(BLACK)
A
C POWER
(BLACK) L
