HONEYWELL MODEL 700/800 SIGNAL PROCESSOR AND VIEWING HEAD
35 66-2069EP—08

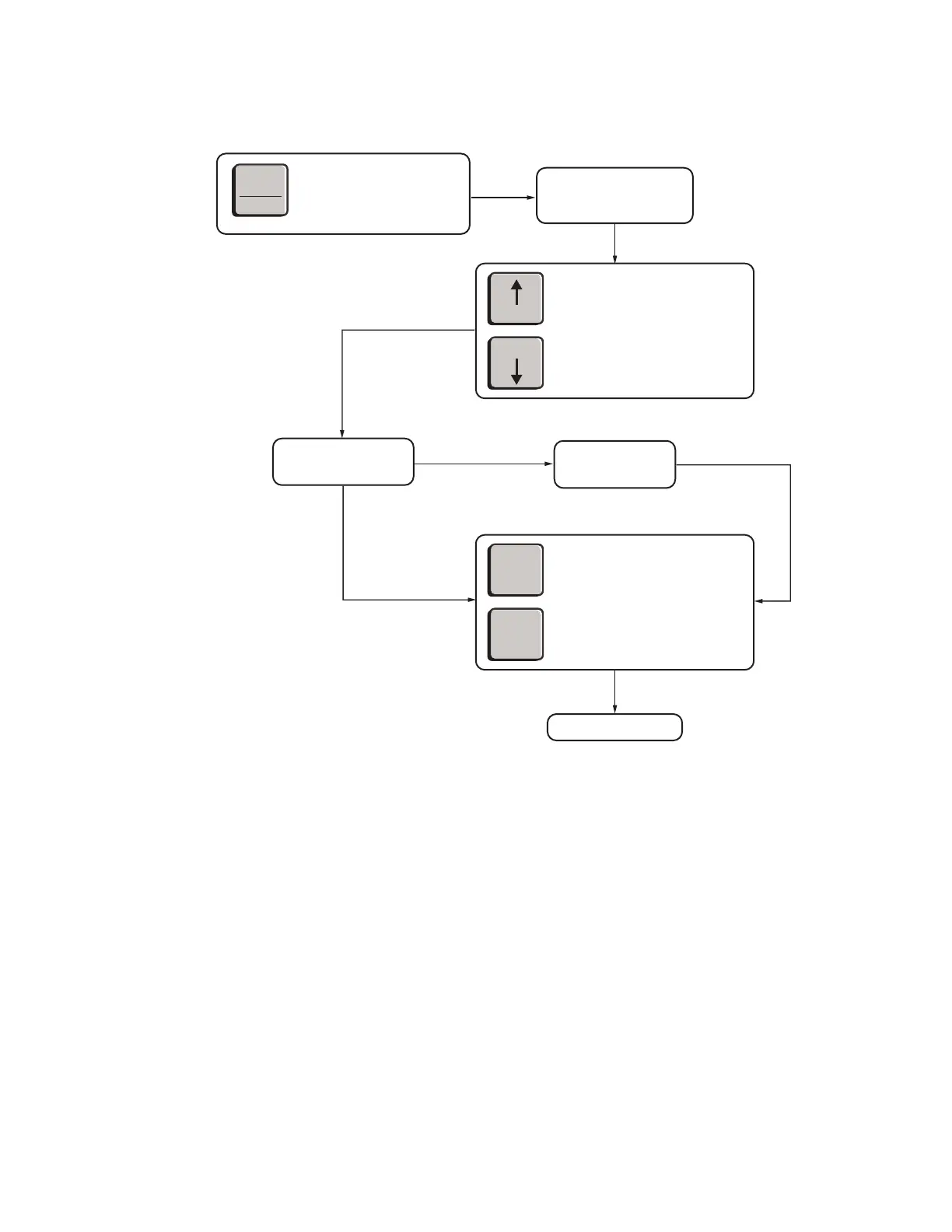

Fig. 27. Flow Chart 9: Viewing Head Gain Setting.
IS THE PANEL LOCKED?
DISPLAY SHOWS CURRENT
GAIN SETTING
DISPLAY SHOWS ‘PL’
UNTIL KEY RELEASED
NORMAL OPERATION
N
SETTING VIEWING HEAD GAIN
Y
M34465A
USE INCREASE OR DECREASE KEYS
TO ADJUST SETTING
INCREASE
DECREASE
PRESS RESET OR WAIT 4 SECONDS
TO RESTORE OLD SETTING
OR
PRESS STORE TO SAVE THE
NEW SETTING
STORE
RESET
rE
ACCEPT
RATIO
SET GAIN
PRESS ACCEPT RATIO / SET GAIN
FOR 2 SECONDS
2 SECS
