HONEYWELL MODEL 700/800 SIGNAL PROCESSOR AND VIEWING HEAD
66-2069EP—08 8

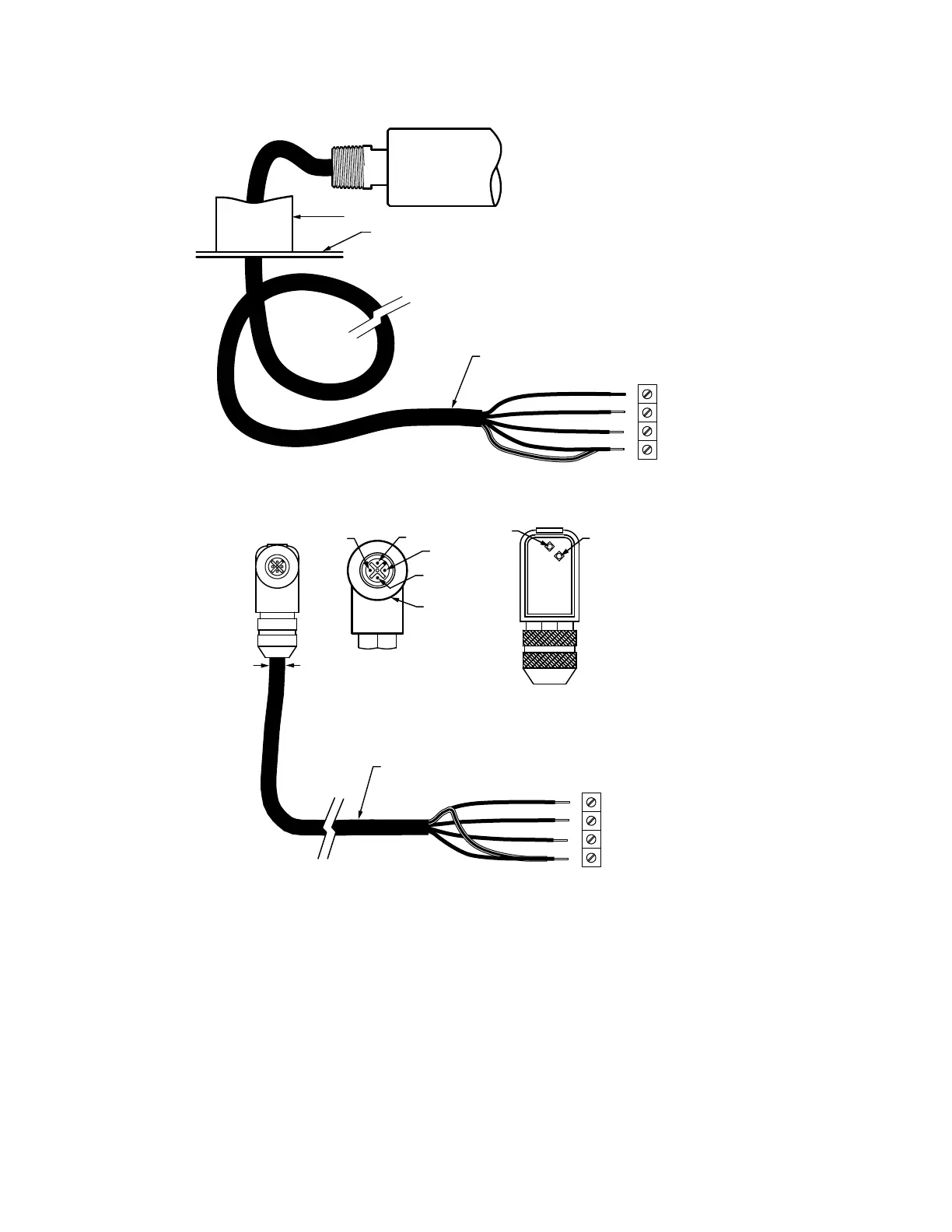

Fig. 3. Model 700 Viewing Head Cable With 1/2 in. NPT Fitting.
Fig. 4. Model 700/800 Viewing Head Cable Connections.
Cable Preparation
NOTE: This section will typically be used for reference
only. The S70X/S80X connector parts are very
small and delicate and difficult to assemble. It is
advisable to purchase pre-made cables from
Honeywell.
Honeywell C330S cable is recommended for use with the
S70X/S80X viewing heads and signal processors. C330S
has a UL ITC rating and can be used in the U.S. in
hazardous locations.
NOTE: Shield shrink tubing is required on shield drain
wire at the signal processor end.
Preparation of the C330S cable at the signal processor
should be done as follows:
1. Referring to Fig. 5, strip cable 2 inches back to
expose the braided shield.
2. Pull braided and foil shield back so that only drain
wire is at 2 inch length. Trim the foil and braid
shields at the cable jacket.
3. Insulate the drain wire with heat shrink.
4. Strip other wires as shown in Fig. 5.
WHITE
BLACK
RED
GREEN
TERMINAL
VH SIG
VH SC
VH +V
VH GND
CONDUIT
ENCLOSURE
S702PF OR S706PF
SHIELD
C330S YELLOW 4-CONDUCTOR
WITH DRAIN AND SHIELD
STANDARD "PIGTAIL" LENGTH = 10 FEET (3 METERS)
M34285C
VIEWING HEAD
CONNECTOR
LOOKING AT PINS
VH SC
VH GND
VH +V
VH SIG
C330S YELLOW, 4 COND
WITH FOIL/BRAID SHIELD
AND DRAIN (ITC & CIC)
CONNECTOR REAR VIEW
WITH NUT LOOSENED
AND COVER REMOVED
5/16 (8)
MAX
METAL
CONNECTOR
RING
M34286B
RED
BLACK
WHITE
GREEN
TERMINAL
VH SIG
VH SC
VH +V
VH GND
SHIELD
GREEN
LED
ORANGE
LED
