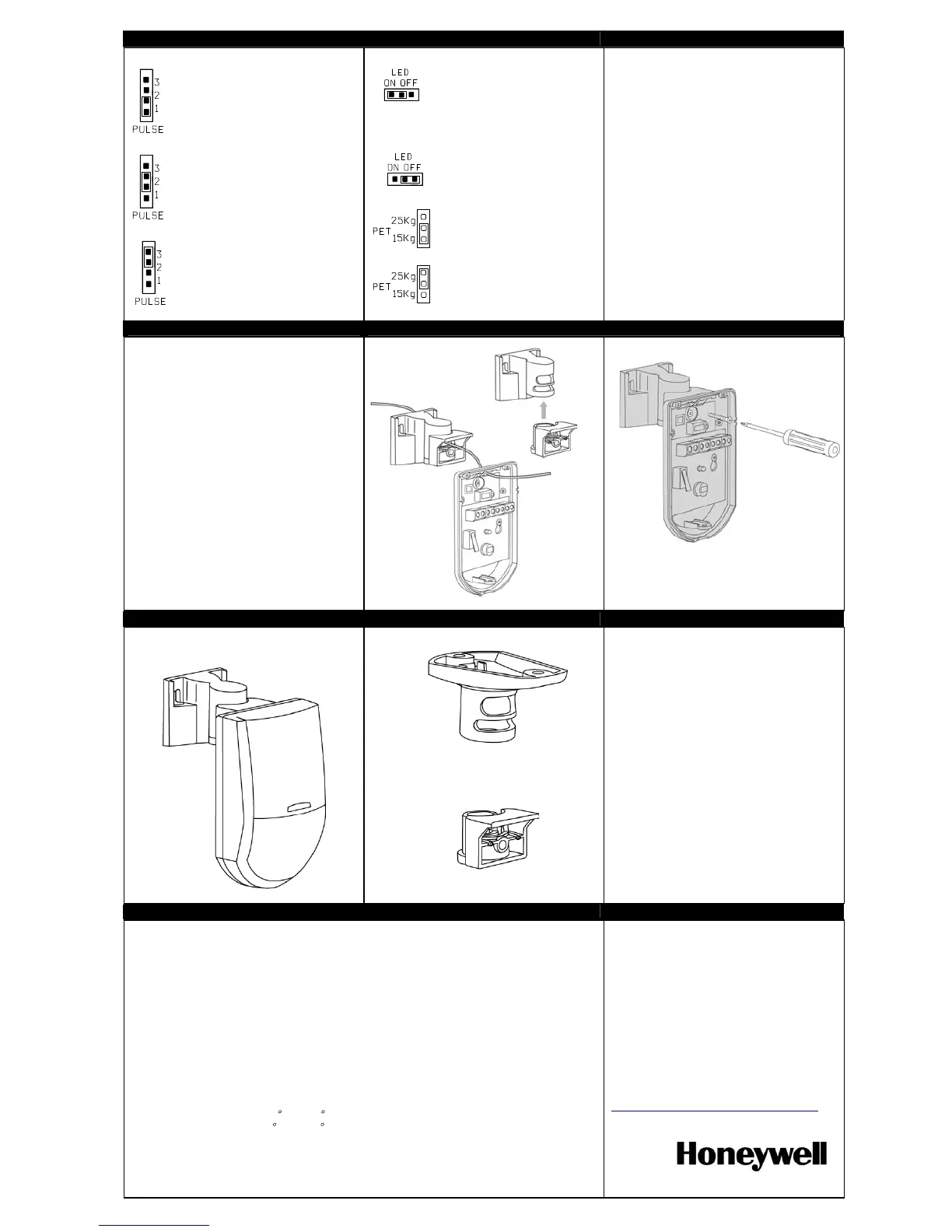

SETTING-UP THE DETECTOR
LED ENABLE JUMPER SETTING
PULSE WIDTH JUMPER SETTING
PIR SENSITIVITY ADJUSTMENT
PET IMMUNITY JUMPER SETTING
POTENTIOMETER
adjustment according to
protected area range.
Use the potentiometer to
adjust the detection
range between 68% and 100% (factory set to
84%). Rotate the potentiometer clockwise to
increase range, counter-c
lockwise to decrease
range.
WIRE SIZE REQUIREMENTS
Use #22 AWG (0.5 mm) or wires with a larger
diameter. Use the following table to determine
required wire gauge (diameter) and length of
wire between the detecto
r and the control panel.
Wire Length m 200 300 400 800
Wire Diameter mm .5 .75 1.0 1.5
Wire Length ft. 800 1200 2000 3400
Wire Gauge # 22 20 18 16
Very stable environment
LED ON
Jumper #1 = ON
Without PET
Moderate nuisance situation
LED OFF
Jumper #2 = ON
PET up to 15 kg (33.1 lb)
Immunity to an
animal up to 15 kg
Relatively high chance of false
alarms
Jumper #3 = ON
Immunity to an
animal up to 25 kg
PET up to 25 kg (55 lb)
TESTING
BRACKET INSTALLATION OPTION
TEST PROCEDURES
WAIT FOR ONE MINUTE OF WARM UP TIME
AFTER APPLYING 12 VDC POWER.
CONDUCT TESTING WITH THE PROTECTED
AREA CLEARED OF ALL PEOPLE.
Walk test
1. Remove front cover.
The pulse jumper must be in position 1. The
LED must be enabled.
2. Replace the front cover.
3. Start walking slowly
across the detection zone.
4. Observe that the detector
s LED lights
whenever motion is detected.
5. Allow 5 sec. between eac
h test for the detector
to stabilize.
6. After the walk test is
completed, the LED may
be disabled.
NOTE:
Walk tests should be conduc
ted, at least once a
year, to confirm proper operation and coverage of
the detector.
WALL AND CEILING INSTALLATION OPTIONS
REPLACING THE LENS
1. Remove the front cover.
2. Using a small flat screwdriver, press on left
and right snaps of the
lens and pull the lens
out from its place (front cover side).
3. Replace a new lens.
4. Push the lens to its place by pressing again
from outside of the front
cover until a click is
heard.
5. Replace front cover.
TECHNICAL SPECIFICATION
MODEL Activ8 PIR
Detection Method Quad (Four element) PIR
Power Input 7.8 to 16 VDC
Current Draw Standby: 8mA (±
5%)
Active: 10mA (±
5%)
Temperature
Honeywell Security & Communications
(UK64)Newhouse Industrial Estate
Compensation YES
Pulse Width Adjustable
Motherwell
Alarm Period 2 sec (±
0.5sec)
Lanarkshire
Alarm Output N.C
28VDC 0.1 A with 27Ohm series protection resistor
ML1 5SB
Tamper Switch
N.C 28VDC 0.1A with
Tel +44 (0)1698 738200
10 Ohm series protection resistor - open when cover is
removed
Fax +44 (0)1698 738300
Warm Up Period 60sec (
±
5sec)
Tech Support: +44 (0)844 8000 235
LED Indicator LED is ON during alarm
Operating Temperature -20
C to +60
C
(-4
F to +140
F)
RFI Protection 30V/m 10 - 1000MHz
EMI Protection 50,000V
of electrical interference fr
om lightning or power through
Dimensions 90mm x 59mm x 37mm
(3.54
x 2.32
x 1.46
)
Weight
40gr (1.4oz)
