4 69-0563—2
8 PROGRAM INDEX WHEEL. Controls high
and low temperature at specific time of
day as set by program pins.
9 PROGRAM PINS. Must be inserted into
24-hour timer dial slots to control program
index wheel.
2
4
1
3
M8723

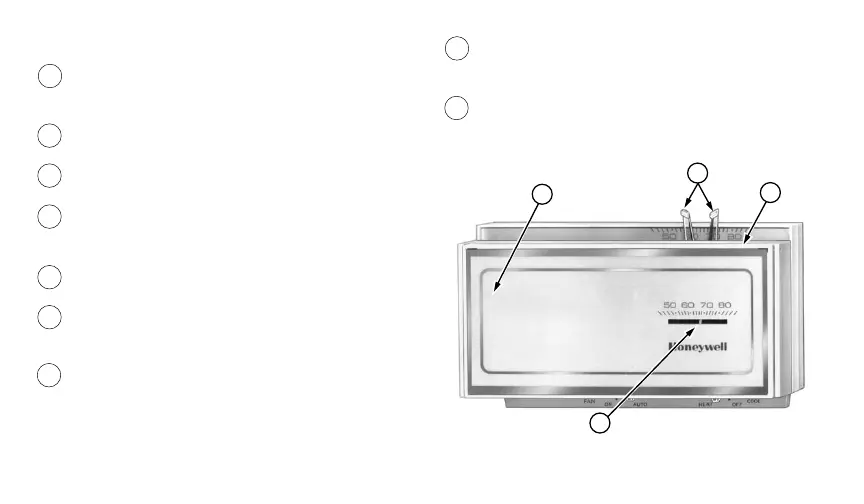

Features Of Your Thermostat
1 FLIP-UP COVER. Lift it up to set timer for
energy savings and comfort temperature
periods.
2 THERMOSTAT COVER. Lift up to adjust
timer.
3 THERMOMETER. Provides accurate room
temperature reading.
4 TEMPERATURE SETTING LEVERS. Left
(blue mark) controls the low temperature, right
(red mark) controls the high temperature.
5 TIMER. This timer provides a 24-hour
slotted dial to hold the programming pins.
6 TIMER SETTING KNOB. Turn clockwise
to match the correct a.m. or p.m. time to
the time indicator.
7 TIME INDICATOR. Arrow head indicates
time for 24-hour dial.
To Next Page
