Honeywell BendixKing KT 76C - Type N and C Connector Assembly Drawing

B ATCRBS TRANSPONDER KT 76C
Rev 3, May 2004 IM 006-10545-0003.dwd Page 2-27

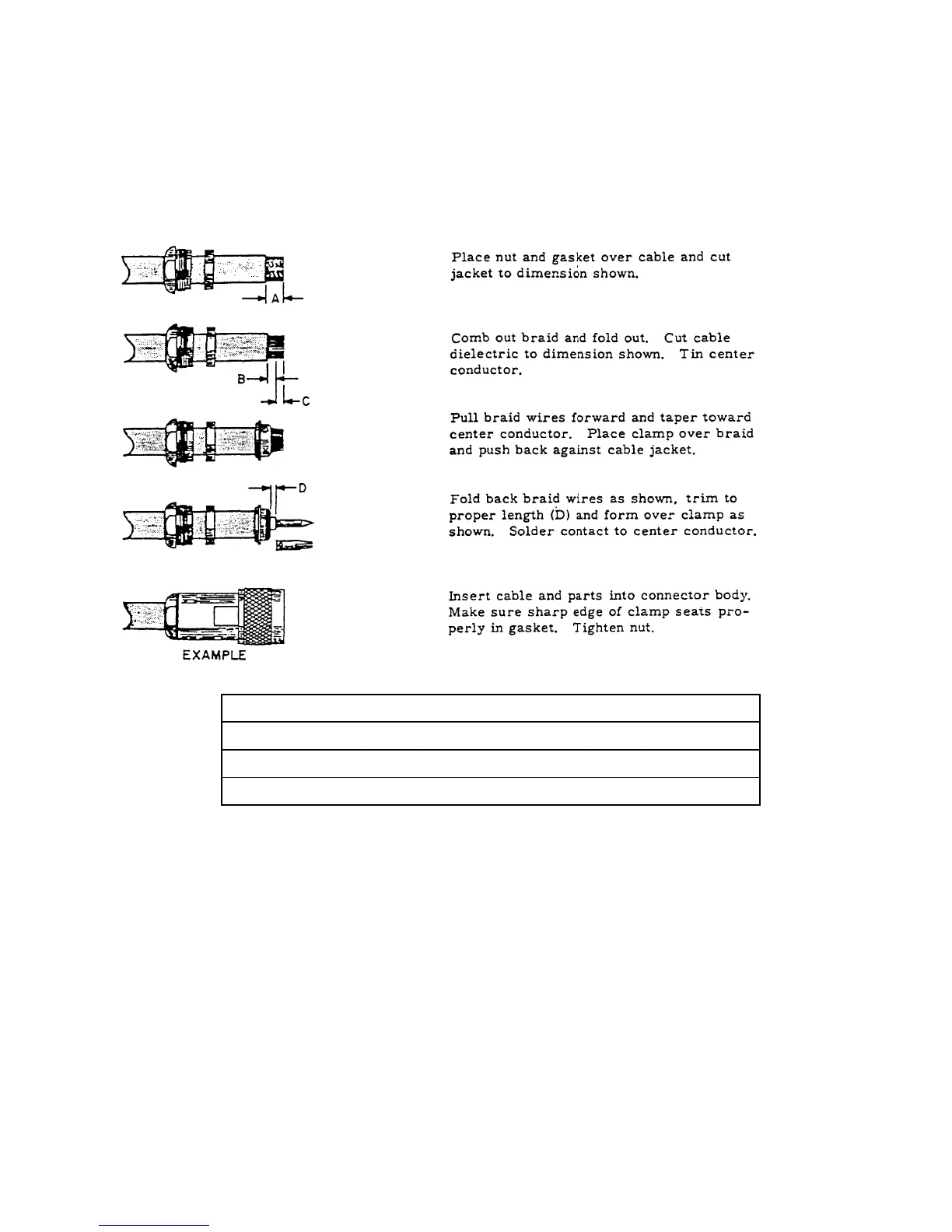

FIGURE 2-8 TYPE “N” AND “C” Connector Assembly Drawing
PART NUMBER SIZE DIMENSION
RG/U CABLE A B C D
024-00075-0000 393 9/32 1/8 5/32 3/64
024-00051-0060 400 9/32 1/8 5/32 3/64
