B ATCRBS TRANSPONDER KT 76C
Rev 3, May 2004 IM 006-10545-0003.dwd Page 3-1
SECTION III
OPERATION
3.1 GENERAL
The following paragraphs describe the operation of the KT 76C. Illustrations of the displays are
furnished to assist the operator in understanding the operation of the unit and also provide a visual
aid for programming sequences.
NOTE
The KT 76C, and all other avionics, should be turned
off before starting the aircraft engine(s).
3.2 DETAILED OPERATING MODES
3.2.1 FUNCTIONAL MODES
The mode is selected by the mode select knob, see the display below for the location of front panel
features (see Figure 3-1).

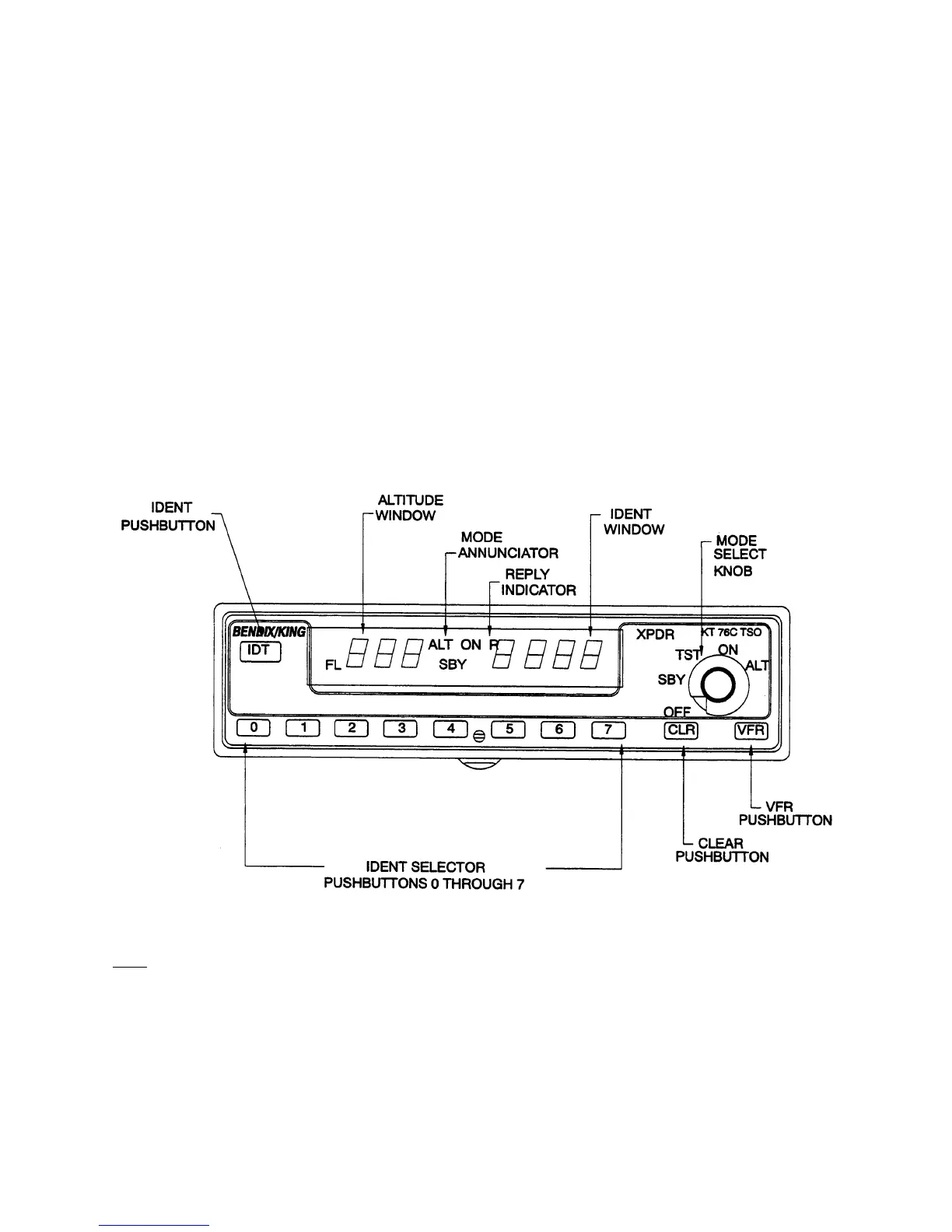

FIGURE 3-1 Unit Functions
OFF
- The unit is not energized.
NOTE
A pictorial of the “OFF” mode is not reflected; all seg-
ments are off (not lit) during the “OFF” mode.
