11 EN1C-0015SZ20 R0602

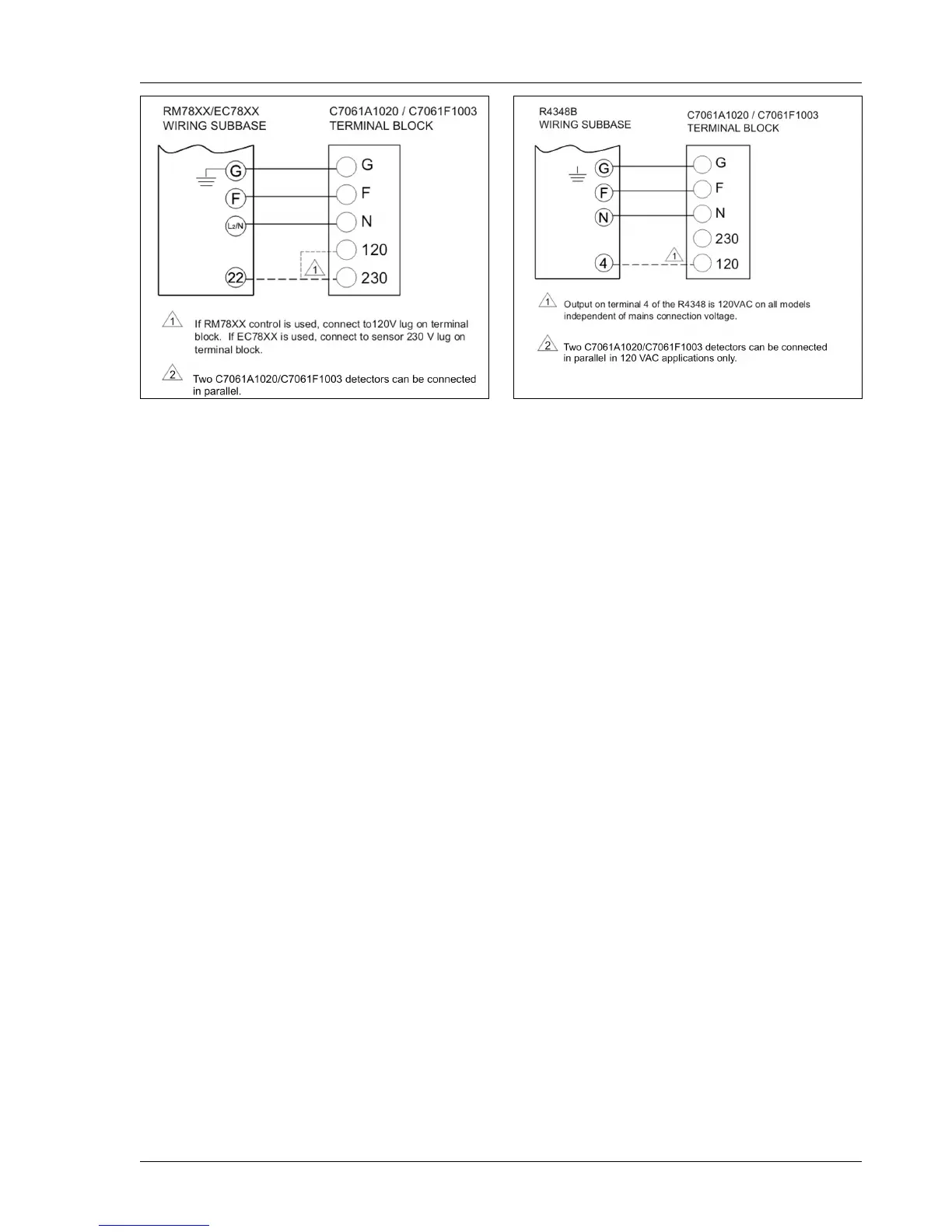

Fig. 10_3. Wiring diagram for C7061A1020/C7061F1003
detector with 7800 SERIES Flame Safeguard
controls with shutter drive circuitry.
Fig.10_4. Wiring diagram for C7061A1020/C7061F1003
detector with R4348B Flame Safeguard controls
with shutter drive circuitry.
