SOLID STATE ECONOMIZER SYSTEM
63-2484—1
5
T6031H Thermostat
A standard spdt switch, without a case, that acts as a
changeover thermostat.
Electrical Rating:
0.25A at 1/.4V to 12 Vdc inductive load.
Control Range, Element Temperature and Differential:
See Table 2.
Approval:
Underwriters Laboratories Inc. Listed:
File E4436, Vol. 4, Guide No. XAPX2.
Dimensions:
See Fig. 5.
ON THE 114496 BRACKET, THE MOUNTING HOLES ARE TWO
NO. 8-32 TAPPED HOLES. THE 107940 BRACKET IS MOUNTED
WITH A 5/32 (4) DIAMETER HOLE AT THE TOP AND A VERTICAL
5/32 X 5/16 (4 X 8) SLOT AT THE BOTTOM.
1
1
M9090
4-3/16
(106)
3/4 (19)
MOUNTING
HOLES
OVERALL LENGTH: 5 (127)
OVERALL DEPTH LESS
ADJUSTING DIAL SHAFT:
2-1/8 (54)
Table 2. T6031H Thermostat Specifications.

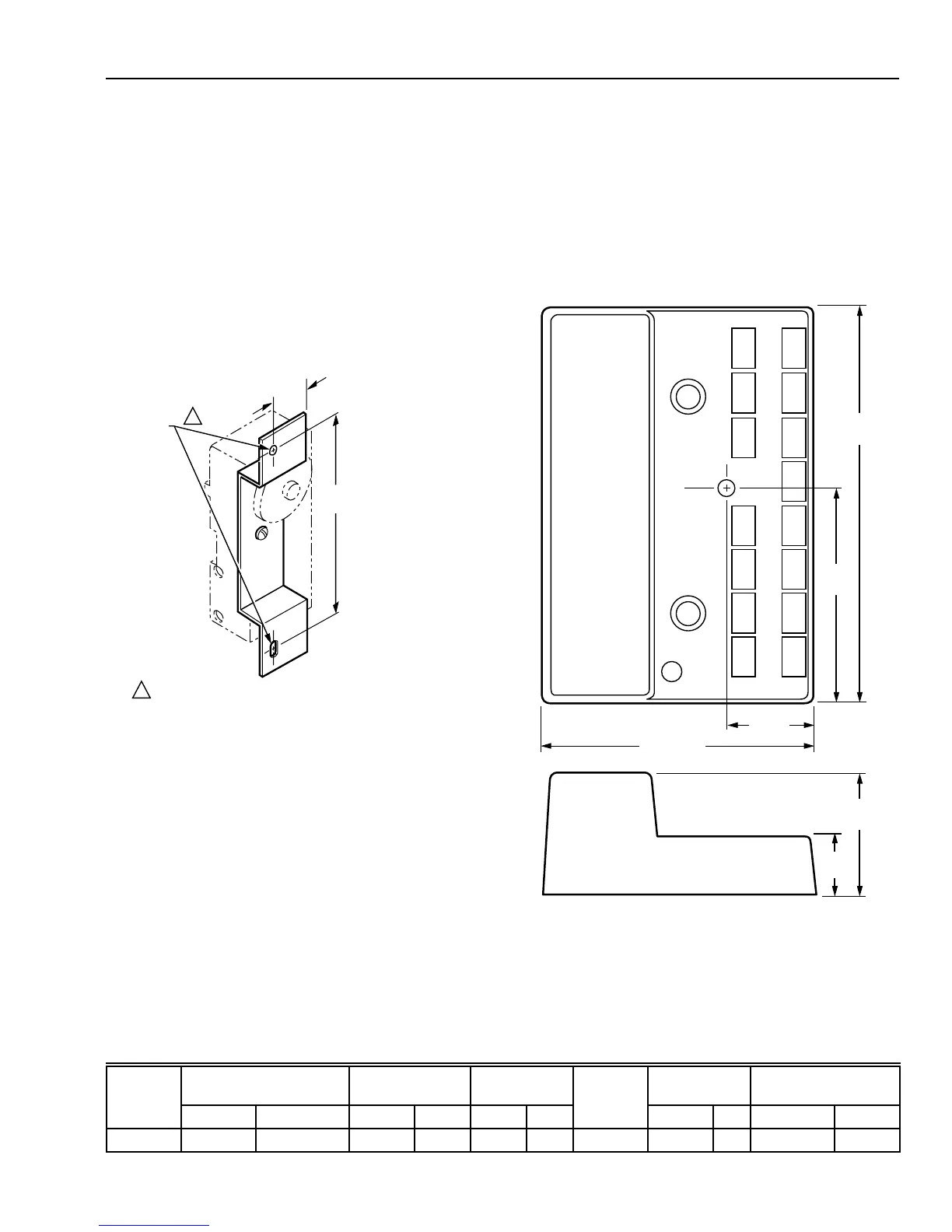

Fig. 5. Approximate dimensions of back mounting
bracket for T6031H in in. (mm).
Model
Control
Range
Max Element
Temperature Differential
Type of
Capillary
Length Bulb Size
Number
°F °C °F °C °F °C
Mounting
ft m in. mm
T6031H 0° to 95° -18° to +35° 150° 66° 3° 2° Back 2 0.6 3/8 x 3-1/2 10 x 89
Temperature Ratings:
-25°F to +125°F (-32°C to +52°·C).
Approval:
Underwriters Laboratories Inc.:
Flammability Rating: UL94V-5V.
Specifications:
See Table 3.
Dimensions:
See Fig. 6.
M9085A
2-3/16
(56)
4-1/16
(103)
7/8 (22)
5/8
(16)
2-13/16 (71)
1-1/4
(32)
Fig. 6. Approximate dimensions of W7459 Solid State
Economizer Logic Module in in. (mm).
W7459A,C,D Solid State Economizer Logic Module
Used with C7400 Sensor or C7650A Sensor and M7415 or
M8405 Actuator to proportion outdoor and return air
dampers for economizer control in commercial HVAC
equipment. Do
not
use C7650A Sensor with W7459D high
enthalpy limit devices.
Electrical Ratings:
Input Voltage: 24 Vac, 50/60 Hz.
Power Consumption: 5.5 VA.
Relay Contact Rating at 24 Vac: 1.5A run, 3.5A inrush.
