CM907-TRV CHRONOTHERM
EN0H 8555 UK07 R0 09/06 6

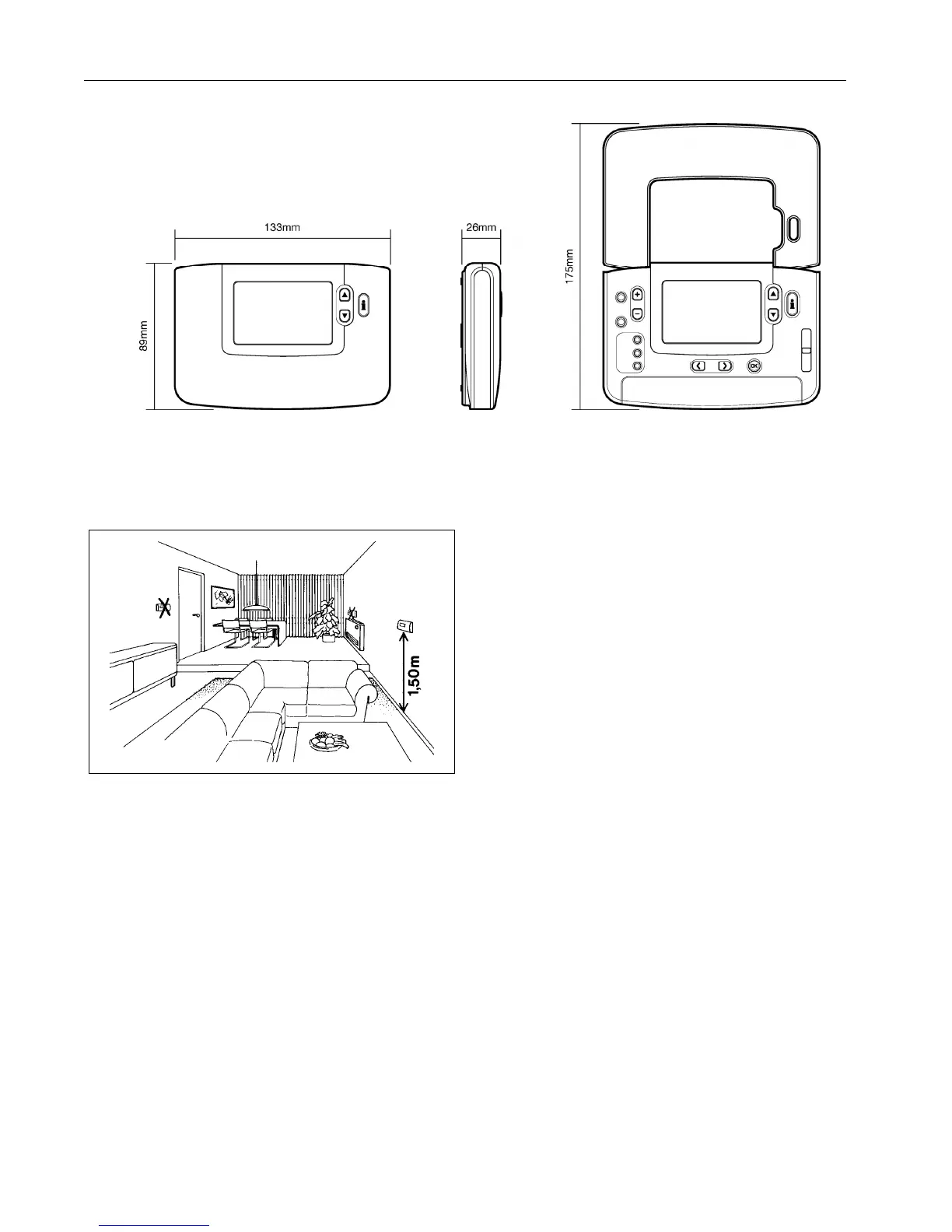

DIMENSIONS
LOCATION
The CM907-TRV thermostat is the control element of the
heating / cooling system and, therefore, MUST be located in
a position with good air circulation, at average room
temperature and on an inside wall 1.5 metres, above the floor
level. Do not position the CM907-
TRV thermostat near
sources of heat (radiators, hot air vents, TV or lights), near
doors or windows, or in direct sunlight.
MOUNTING
The CM907-TRV thermostat can be mounted directly on the
wall surface or on an electrical wallbox.
WIRING
The CM907-TRV thermostat is designed for fixed wiring only
and must be installed in accordance with the latest l.E.E.
regulations. Ensure the wiring connection to the supply is via
a fuse rated at no more than 8 amps and a Class "A" switch
(having contact separation of at least 3 mm in all poles).
IMPORTANT
1. The installer must be a trained service engineer
2. Disconnect the power supply before beginning
installation
