CT500 ELECTRONIC THERMOSTAT
69-1525—2 4

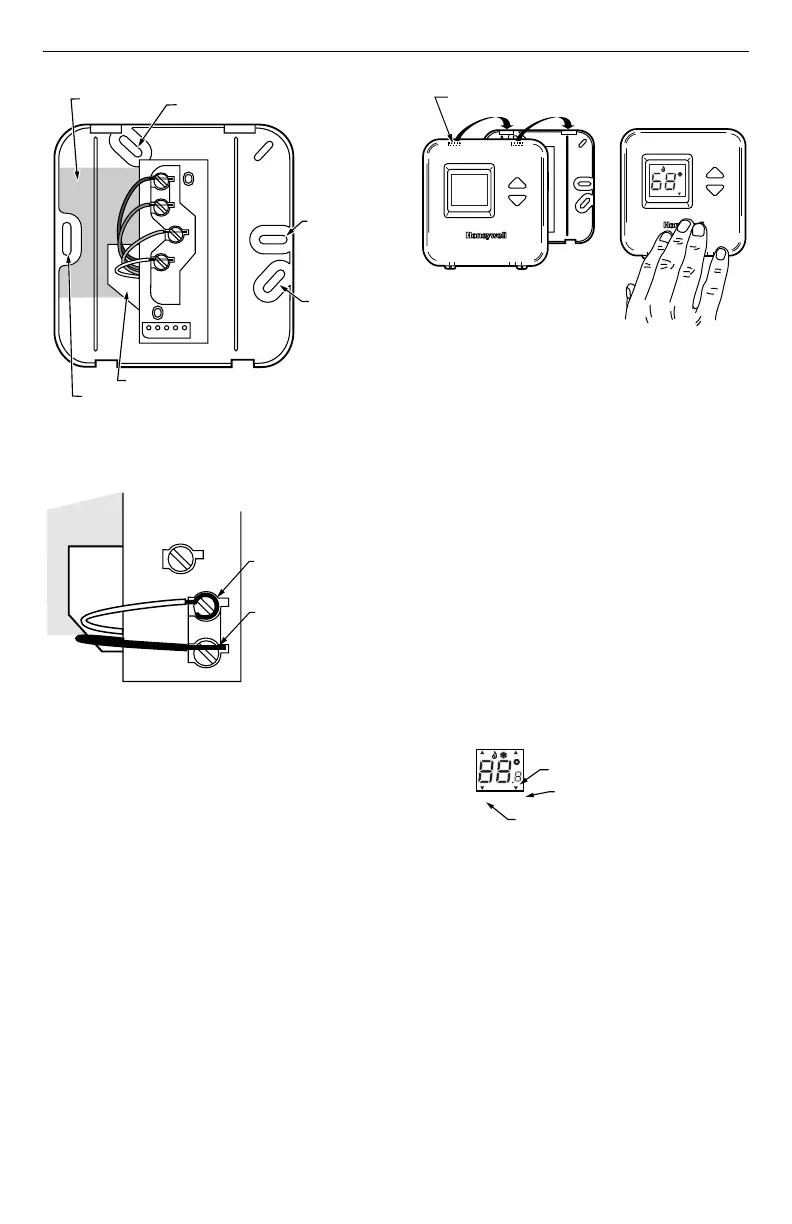

Fig. 6. CT500 wallplate wiring connections.
Fig. 7. CT500 methods for wiring connection.
5 MOUNT THERMOSTAT TO
WALLPLATE
❑ Align the tab and connector pins at the top of the
thermostat with the wallplate. See Fig. 8.
Fig. 8. Mounting thermostat to wallplate.
❑ Press the thermostat straight onto the wallplate to
latch.
NOTE: To remove the thermostat from the wallplate,
grasp the thermostat on both sides and pull it
straight out.
❑ Restore power to the heating/cooling system.
6 OPERATE YOUR THERMOSTAT
Display Temperature Setting
a. Press ▼ or ▲ once to display present temper-
ature setting.
b. The temperature setpoint and the room tem-
perature are shown separately on the digital
display. The ▼ indicator points to Set when the
temperature setpoint is displayed and to Room
when the room temperature is displayed.
7 SET FAN AND SYSTEM
SWITCHES
Manually control fan and system settings using the
switches located at the bottom of the thermostat case.
See. Fig. 9 for switch locations.
M14874
ALTERNATE
MOUNTING
SCREW HOL
E
MOUNTING
SCREW
HOLE
MOUNTING
SCREW HOLE
ALTERNATE MOUNTING
SCREW HOLE
KEEP WIRING IN
SHADED AREA
WIRING ENTRANCE HOLE
W
Y
G
R
M1253
7
FOR WRAPAROUND, STRIP
7/16 IN. (11 mm)
FOR STRAIGHT INSERTION
,
STRIP 5/16 IN. (8 mm)
M11025B
FAN SYSTEM
Auto On
Cool Off Heat
DASHED LINES INDICATE TABS
ON BACK OF THERMOSTAT
FAN SYSTEM
Auto
Cool Off Heat
ENGAGE TABS AT TOP
OF THERMOSTAT WITH
SLOTS ON WALLPLATE.
A
B
PRESS LOWER EDGE OF
CASE TO LATCH.
Set
Room
Set
Room
S
et
Room
INDICATOR
ROOM TEMPERATURE
SETPOINT TEMPERATURE
M1467
9
