Honeywell DBC2000E10 Series Installation Instructions

ENI7003R8 KO65 2013
9

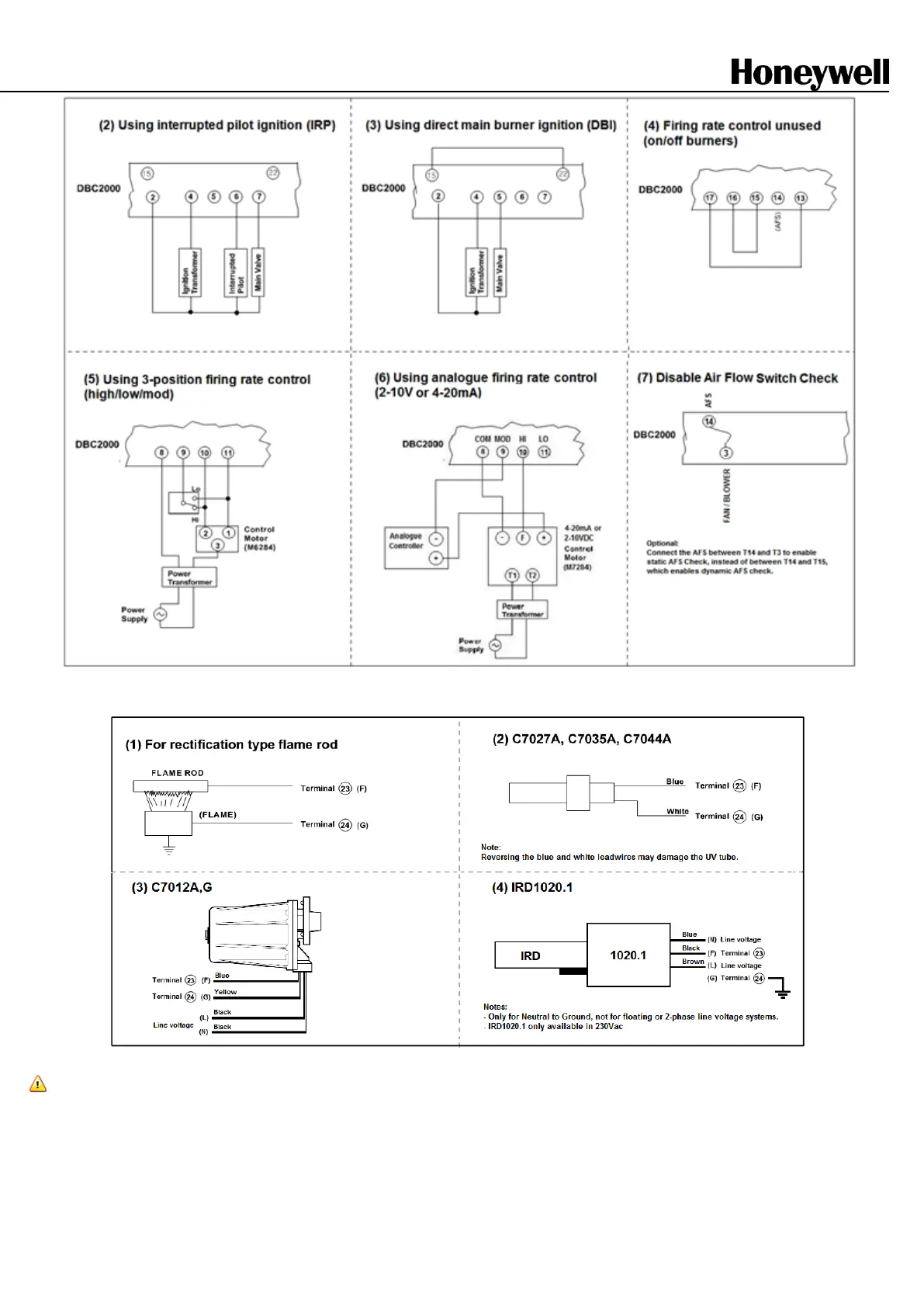

Fig. 3-3: More examples of wiring to external equipment
Fig. 4-1: Wiring a flame detector
CAUTION
There is line voltage on flame sensor inputs. Don’t touch the lead wires of the UV detector or the flame sensing
electrode to avoid an electrical shock.

Honeywell DBC2000E10 Series Specifications

General

Brand	Honeywell
Model	DBC2000E10 Series
Category	Controller
Language	English
