2 Front Sealing

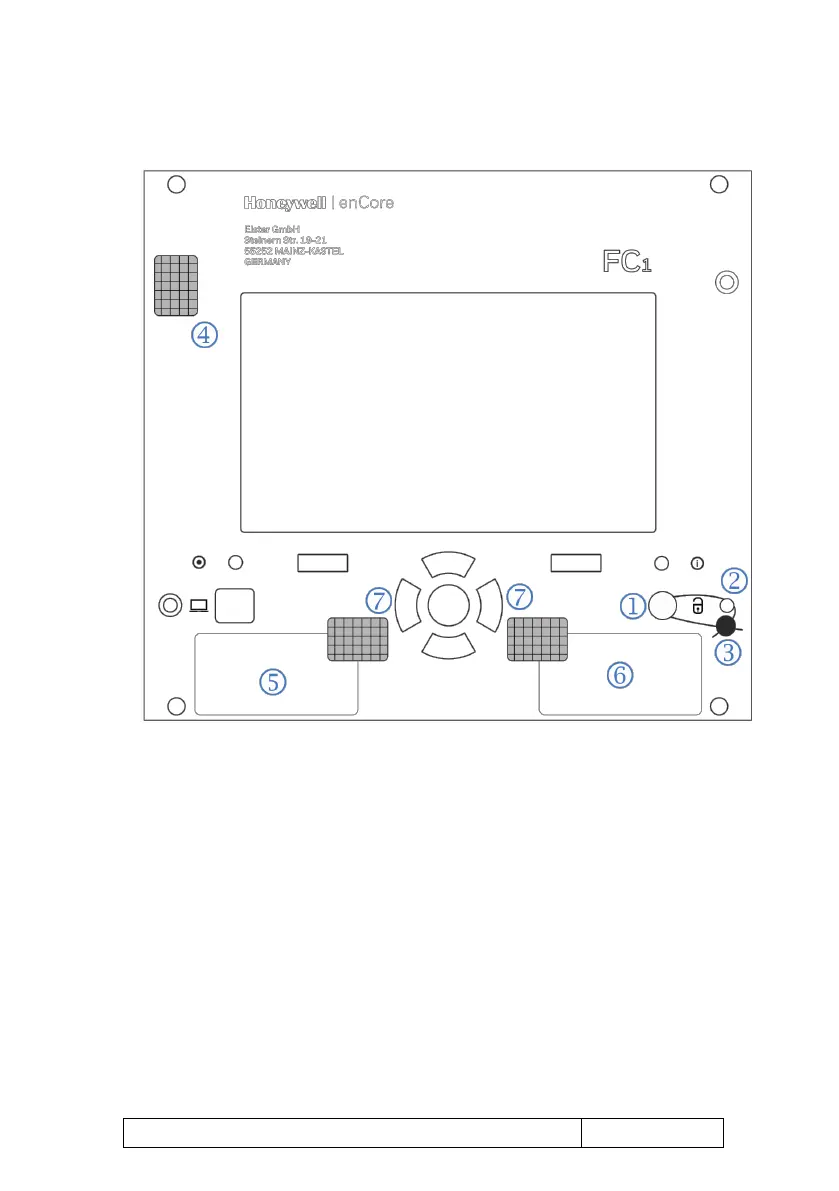

Figure 7: FC1 device sealing, front view (1/3 housing width),
exemplary for Honeywell design (same for Elster design)
Security switch (sealable)
Seal screw
Wire and seal
Securing mark (adhesive label), securing a housing screw
Location of type plate part 1
Location of type plate part 2
Securing mark (adhesive label), securing the type plate parts
The front sealing of a device with a wide housing (1/2 housing width) is the
same (cf. Figure 7
): Wire and seal for securing the security switch
,
