Average temperature measurement with MPT / RTD
___________________________________________________________________________
Instruction manual VITO Page 29

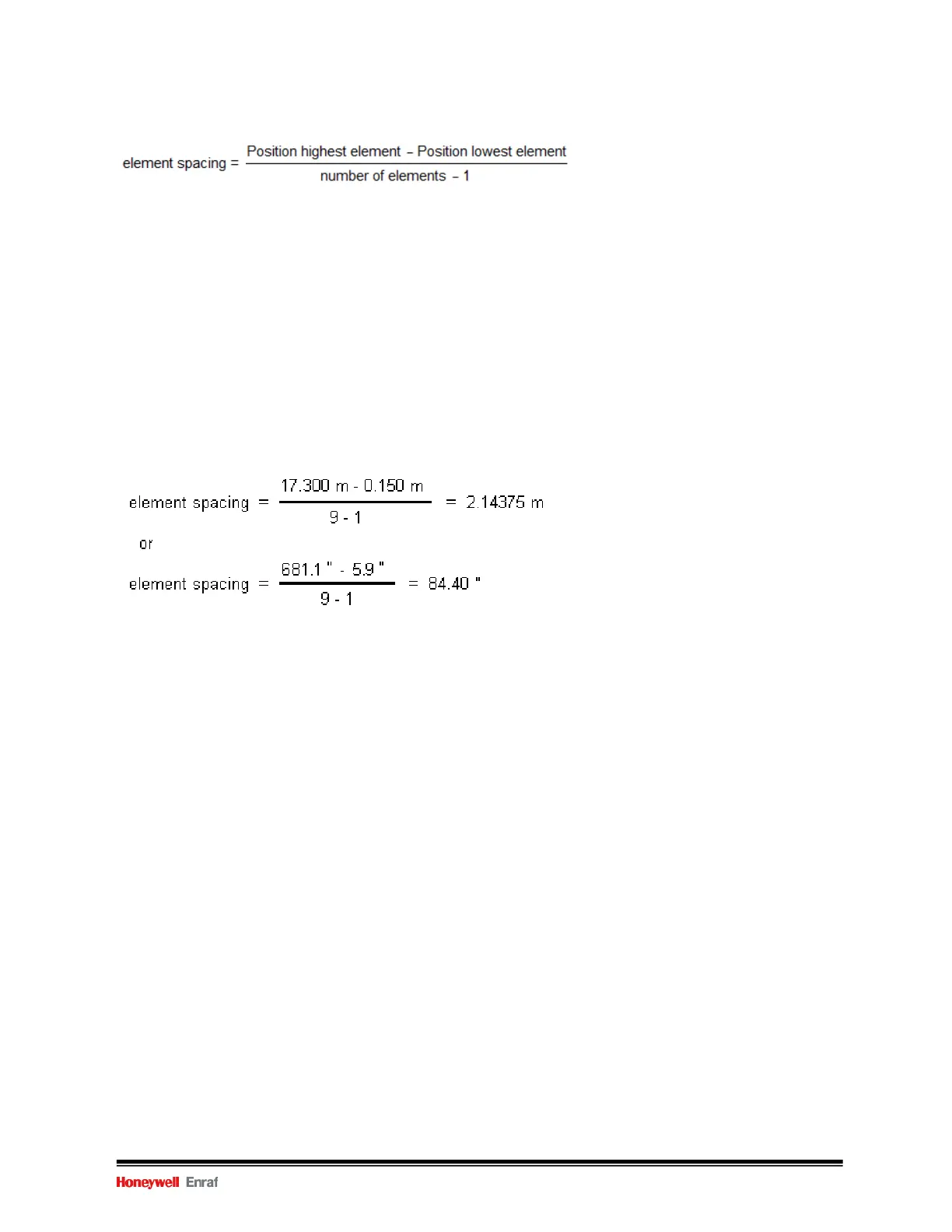

The elements are located at equal distances, hence the spacing is found:
Then the element positions are found by:
J0 = Position lowest element
J1 = Position lowest element + 1 x element spacing
J2 = Position lowest element + 2 x element spacing
etc.
For example:
Position lowest element is 0.15 m (5.9”)
Position highest element is 17.300 m (681.1 ”)
Number of elements: 9
Step 1:
Element spacing:
Step 2:
Element positions:
J0 = 0.150 m (or 5.9 ”)
J1 = 2.294 m (or 90.3 ”)
J2 = 4.438 m (or 174.7 ”)
J3 = 6.581 m (or 259.1 ”)
J4 = 8.725 m (or 343.5 ”)
J5 = 10.869 m (or 427.9 ”)
J6 = 13.013 m (or 512.3 ”)
J7 = 15.156 m (or 596.7 ”)
J8 = 17.300 m (or 681.1 ”)
