Honeywell Ex-Or MR1500P User Manual

Note: A means of disconnection must be incorporated into the fixed wiring in accordance with the current
wiring regulations.
3
Electrical Connections

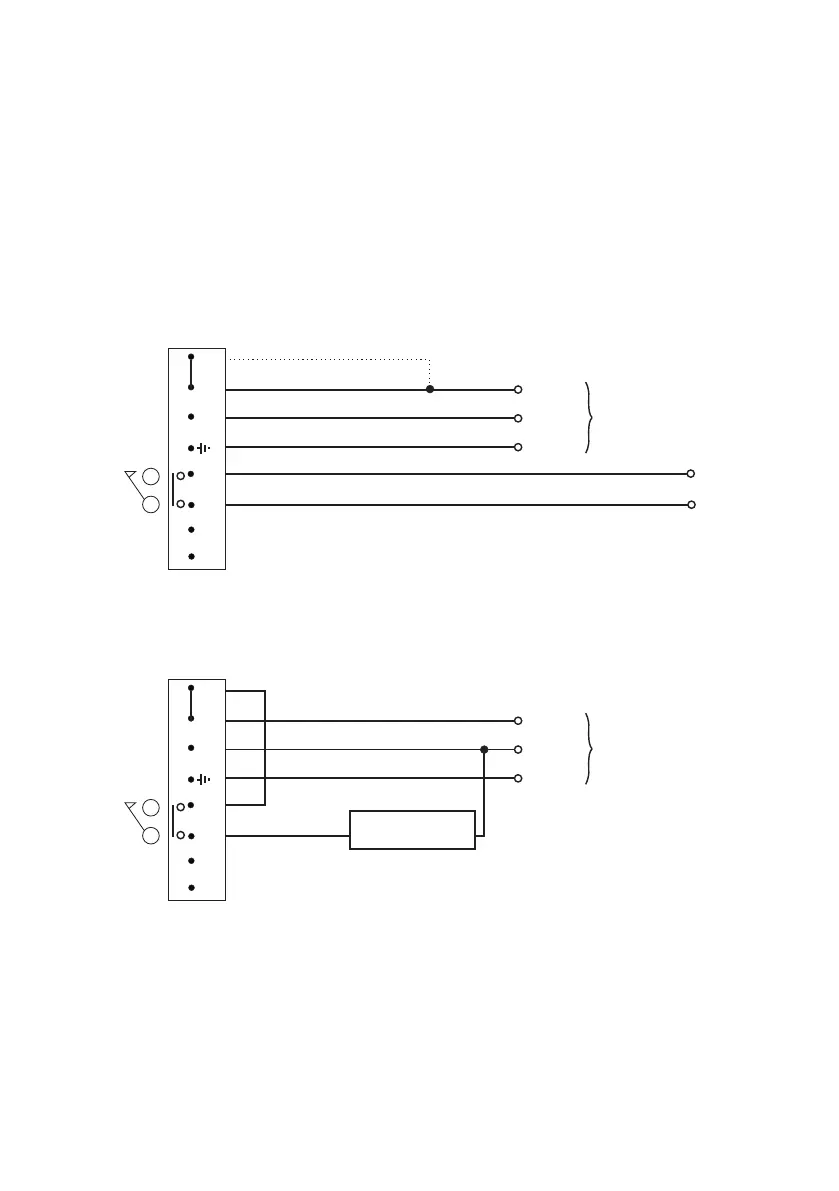

Mid Range LightSpot should be connected in accordance with the diagram below.
Mid Range LightSpot is designed to control a switched load of up to 10 Amps.
When switching via the relay output, multiple MR1500Ps' relay outputs may be connected in parallel provided
the controlled load does not exceed 10 Amps.
L
L
N
1 2
3
4
5
6
7
8
NC
NC
Mains
Supply
Always check product label before wiring
Live
Neutral
Earth
Live In
Neutral
Earth
No Connection
Live In
(Internally linked)
Volt-Free Contacts
or
R
R
VOLT-
FREE
OUTPUT
L
L
N
1 2
3
4
5
6
7
8
NC
NC
Mains
Supply
Live
Neutral
Earth
Live In
Neutral
Earth
No Connection
No Connection
Live In
(Internally linked)
R
R
VOLT-
FREE
OUTPUT
10 Amps Maximum
SWITCHED LOAD
Volt-Free Operation
Live-Out Operation
No Connection
