DISTRIBUTED I/O
29 EN0B-0090
Accessories, Standards, Ratings, and Literature
Accessories:
— XAL 1 Swivel Label (required for Manual Override
Modules).
— 209541B Termination Module (one or two required,
depending on L
ONWORKS bus layout; see Excel 500
Installation Instructions, EN1R-1047 for details).
— XAL 2 Cover Release Tool (required for opening the
module housing to set the module address using the
rotary HEX switch).
Approvals and Standards:
• CE and EN 50082-1
Environmental Ratings:
• Operating temperature: 32° to 122°F (0° to 50°C)
• Shipping/storage temperature: -13° to 150°F (-25° to
65°C)
• Relative humidity (operation and storage): 5% to 90%,
non-condensing
Applicable Literature:
• EN0B-091 Excel 100/500/600 System Overview
• EN1R-1047 Excel 500/600 Installation Instructions
• EN0B-270 Excel 50/500 LONWORKS Mechanisms

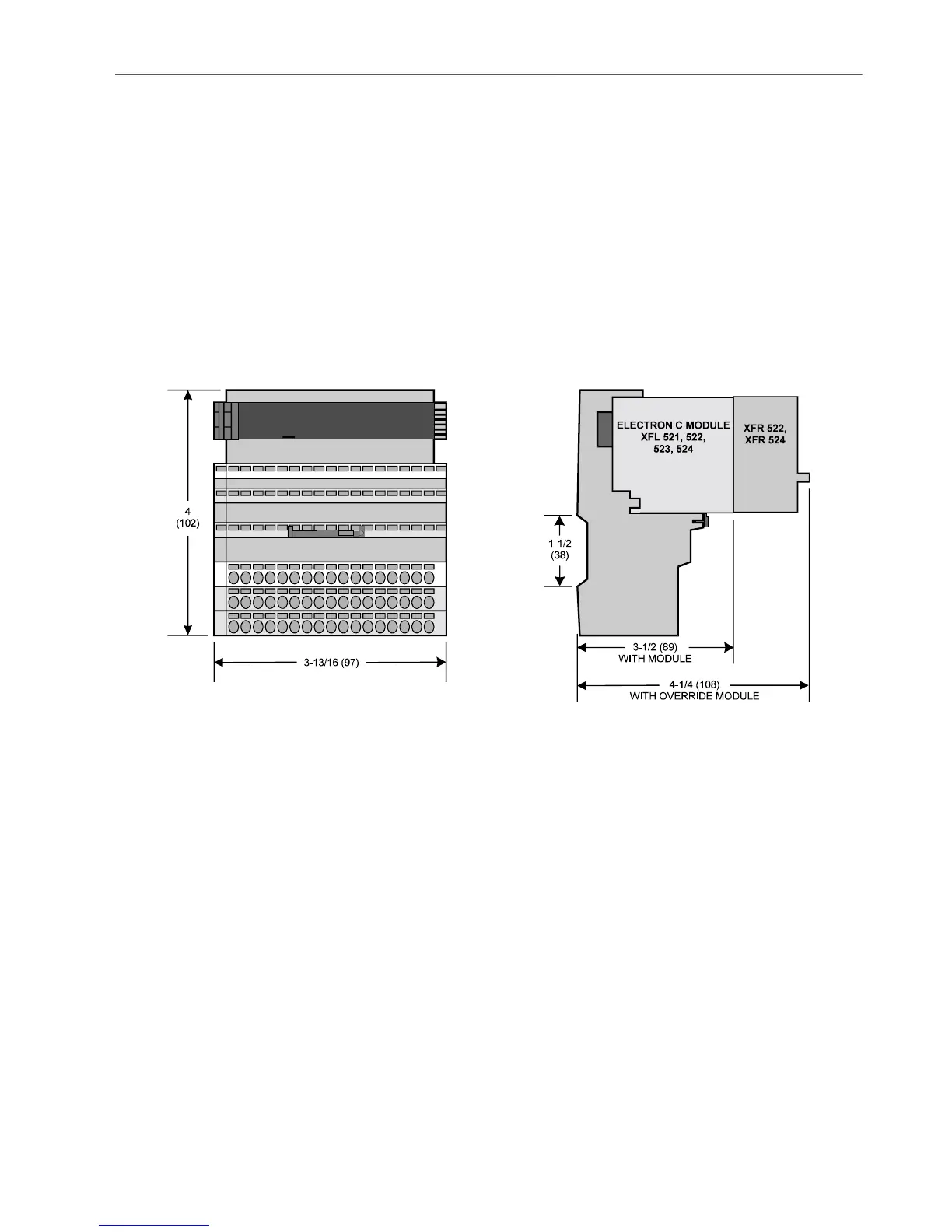

Figure 39. Terminal block XSL513/514 (top view) Figure 40. Terminal block XSL513/514 (side view)
