Honeywell EXCEL 5000 OPEN SYSTEM XFL521B User Manual

DISTRIBUTED I/O
EN0B-0090 8
Relay Modules MCD 3 and MCE 3
The relay modules facilitate the control of peripheral devices
with high load via the analog outputs. Figure 4 and Figure 5
present connection examples for the relay modules MCD 3
and MCE 3, respectively.
230 Vac / 120 Vac
FU
S
E
0.2 A
K 1
K 2
K 3
3 A
1112131415161718
12
2
3
K3
45
K1
LN
678
MCD 3
A
O1
18
A
O2
19
A
O3
20
A
O4
21
00000001

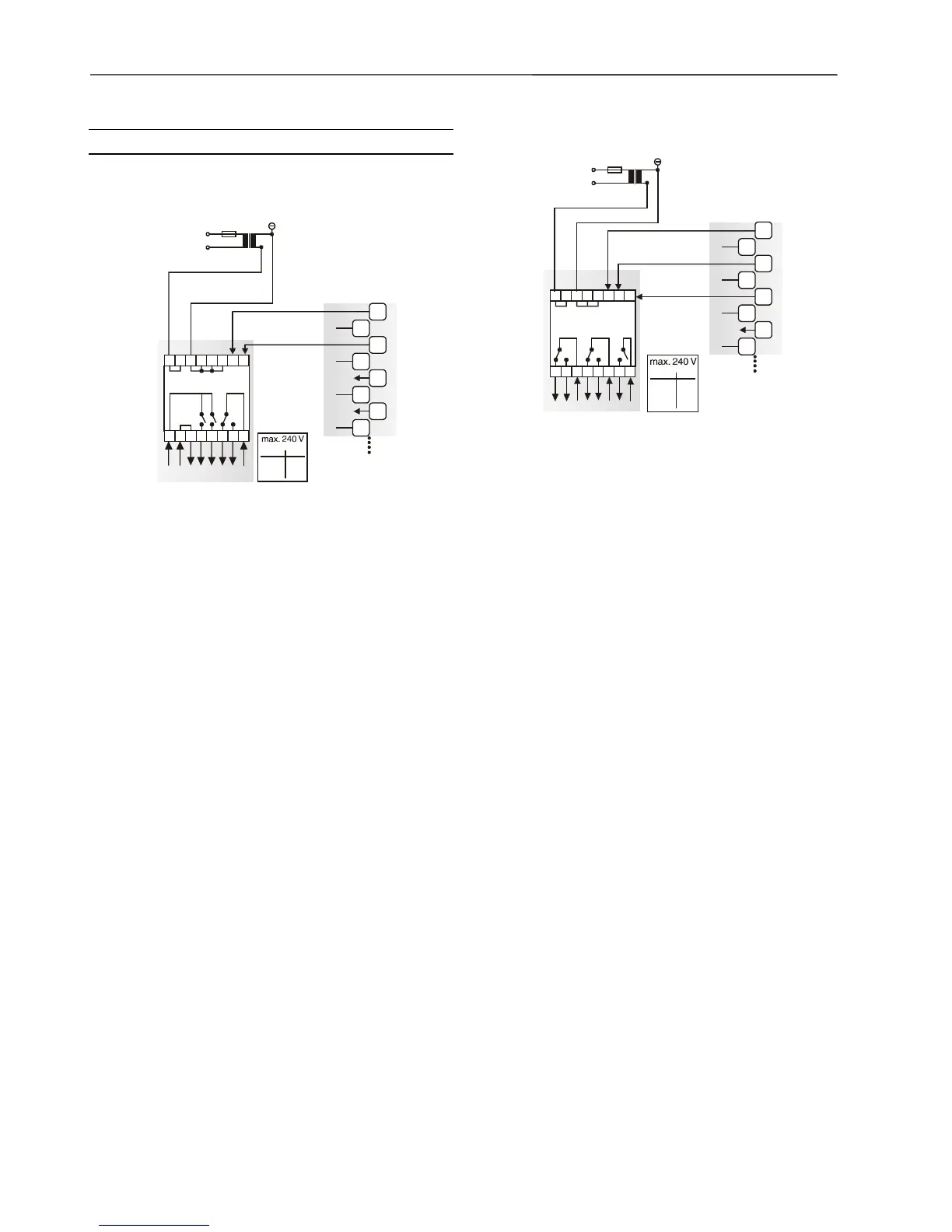

Figure 4. Analog Outputs, Connection of Relay MCD 3.
MCD 3
Relay terminal 17 controls the changeover contact K3. Relay
terminal 18 controls the ON contacts K1, K2. Ground can be
looped through terminals 2/3.
230 Vac / 120 Vac
FU
S
E
A
O1
18
A
O2
19
A
O3
20
A
O4
21
00000002
1112 13 14 15 1617 18
123
K1 K2
K3
45678
MCE 3
0.2 A
K 1
K 2
2 A
K 3
Figure 5. Analog Outputs, Connection of Relay MCE 3.
MCE 3
Relay terminal 16 controls the ON contact K3. Relay terminal
17 controls the changeover contact K2. Relay terminal 18
controls the changeover contact K1.
Power Supply
Several relay modules can be connected in series via the
bridged terminal pair:
24 Vac: Terminals 11/12 of the relay
24 Vac (-): Terminals 13 to 16 of the relay
