Mounting / Dismounting the Braces and Type-C Safety Latches
1a.
4.
5.
6.
1b.
2.
3.

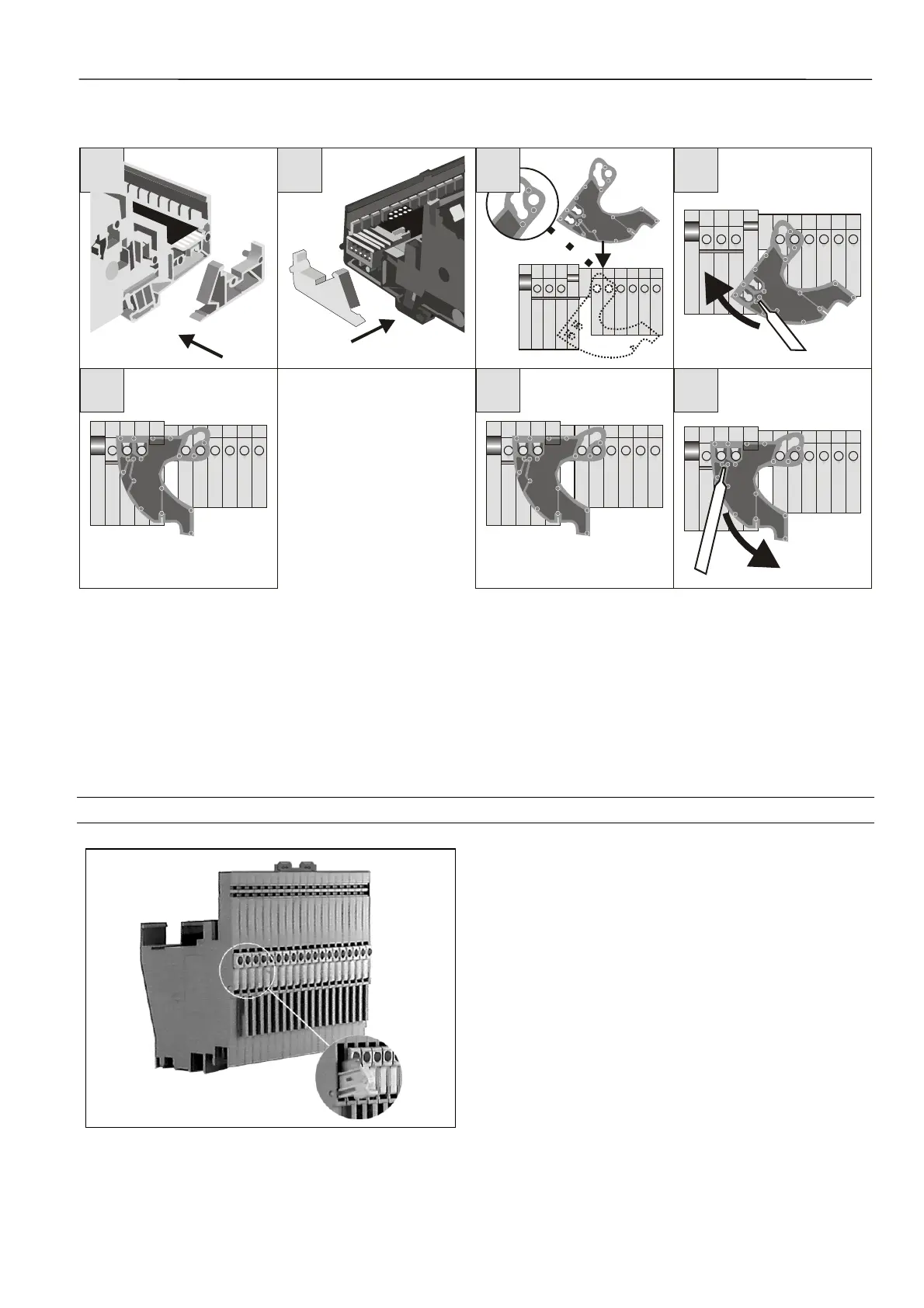

Fig. 11. Mounting braces (steps 1a and 1b) and mounting (2, 3, and 4) and dismounting type-C safety latches (steps 5
and 6)
Mounting Accessories
See also section "Accessories, Standards, Ratings, and
Literature" on page 29 for additional parts which may be
needed for mounting.
Manual Terminal Disconnect Module XSL512
• Mounts between terminal blocks and Distributed I/O
modules
• Manual terminal disconnect switches
• 18 disconnect switches
• Dimensions (WxLxH): 58x97x55 mm
• Safety latch secures XFL module in its position
The XSL512 Manual Terminal Disconnect module allows
each of the terminal block's input connections to be manually
disconnected from the plugged-in module. This is particularly
useful for troubleshooting and installation.
