Honeywell EXCEL 5000 Product Data

DISTRIBUTED I/O – PRODUCT DATA
Manufactured for and on behalf of the Environmental & Energy Solutions Division of Honeywell Technologies Sàrl, Rolle, Z.A. La Pièce 16, Switzerland by its Authorized Representative:
Automation and Control Solutions
Honeywell GmbH
Böblinger Strasse 17
71101 Schönaich / Germany
Phone: (49) 7031 63701
Fax: (49) 7031 637493
http://ecc.emea.honeywell.com
Subject to change without notice. Printed in Germany
EN0B-0090GE51 R0316
electronic module
(XFL521x, 522x,
523x, 524x)
manual
override
module
(XFR522,
XFR524)
3-13/16 inches (97 mm)
4-1/8 inches (104.5 mm)
top view
side view
3-1/2 inches (89 mm)
with electronic module
4-1/4 inches (108 mm)
with manual override module
1-1/2 inches
(38 mm)

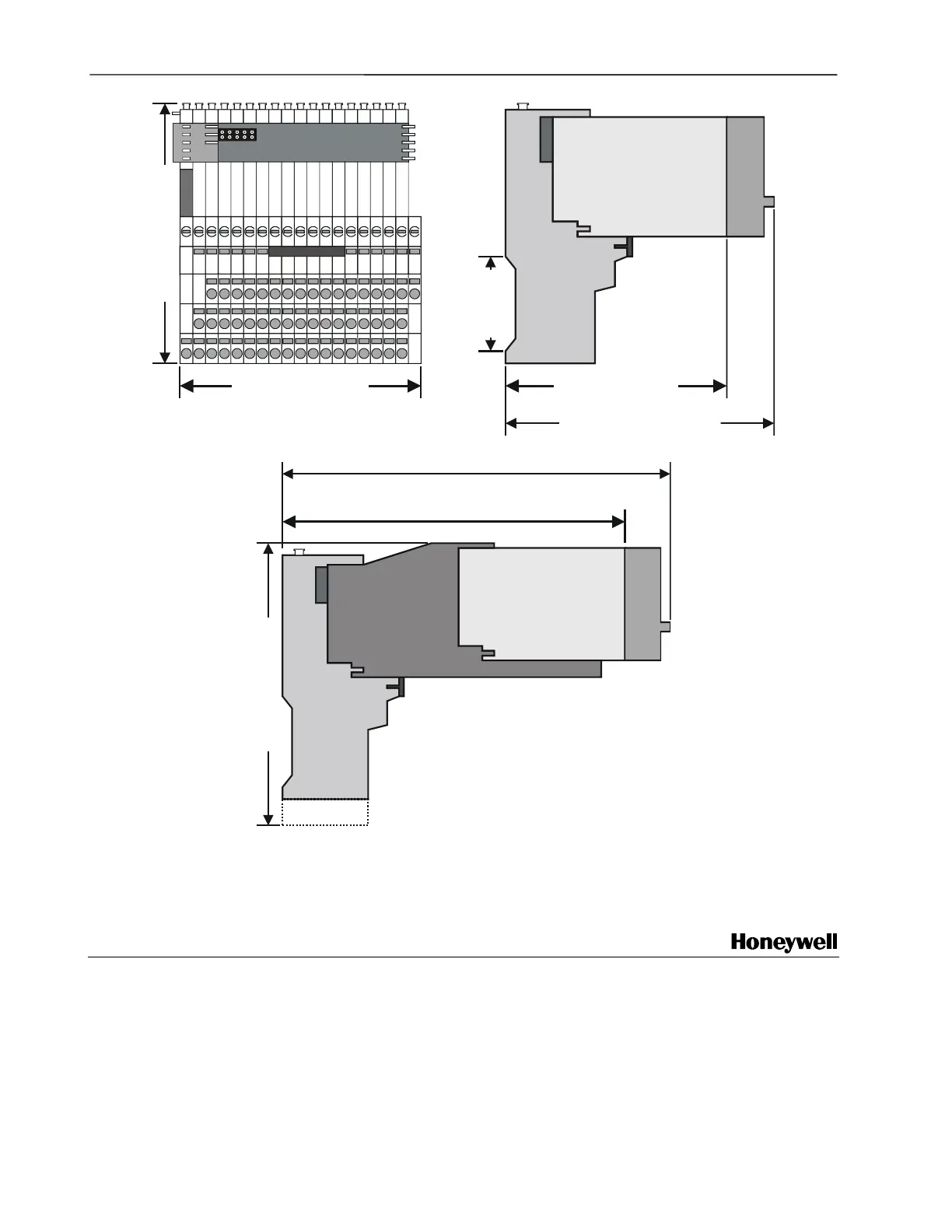

Fig. 47. Terminal block XSL513/514
electronic module
(XFL521x, 522x,
523x, 524x)
manual
override
module
(XFR522,
XFR524)
6-27/64 inches (163 mm)
with manual disconnect module and manual override module
5-43/64 inches (144 mm)
with manual disconnect module
4-41/64 inches (118 mm)*
XSL511
*The maximum length of 4-41/64 inches (118 mm)
is attained when the
XSL511 LON Connector is attached.
Fig. 48. Outside dimensions of XSL513/514 terminal blocks and mounted modules (side view)
