MOUNTING

M943B

M944B

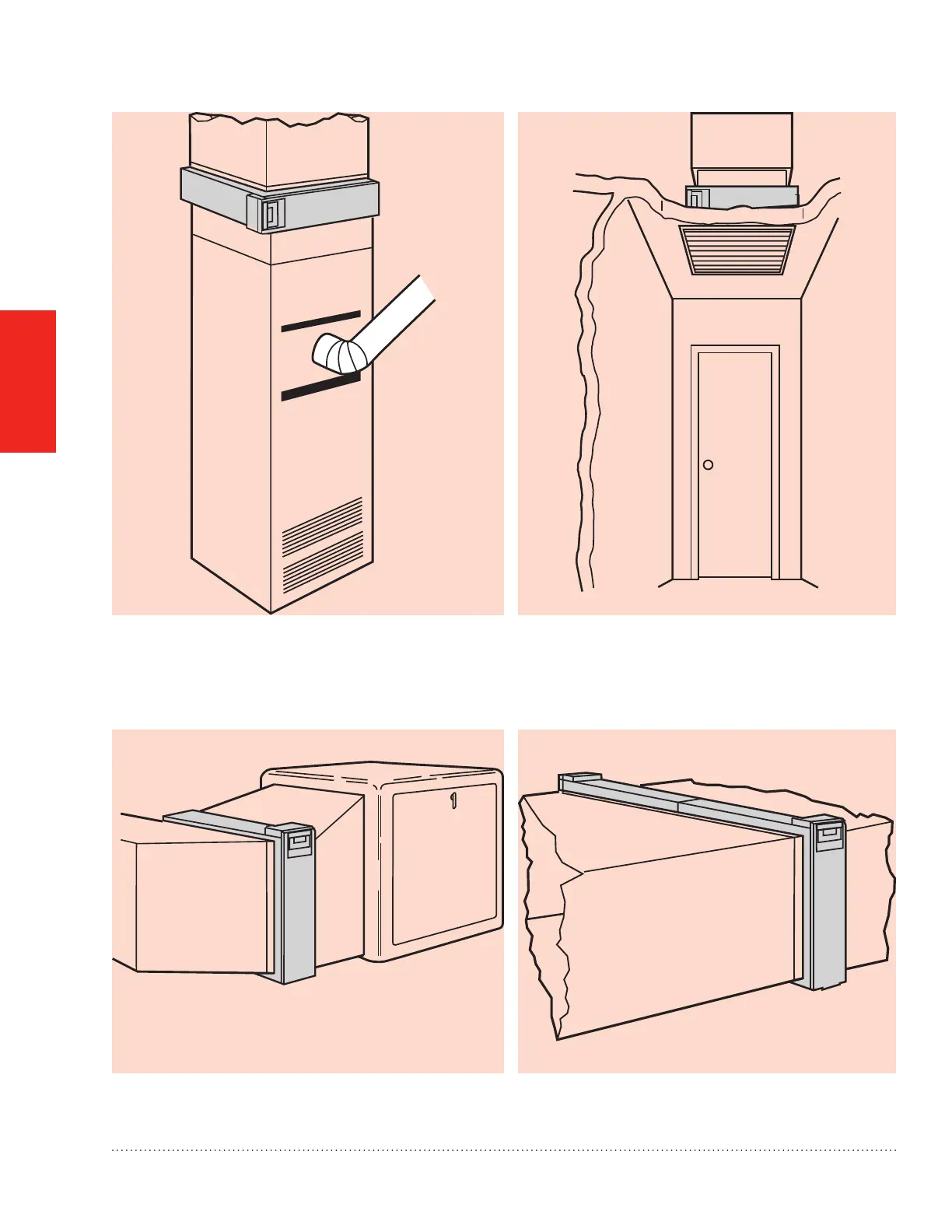

Fig. 5. Counterow furnace, with media air cleaner

mounted horizontally in return duct or plenum just above

furnace.

Fig. 6. Central fan installation, with media air cleaner

mounted horizontally in central return duct.

M945B

M946B

Fig. 7. Horizontal furnace, with media air lter mounted

vertically in return duct near furnace.

Fig. 8. Two or more media air cleaners used in a high

capacity system.

F100 Media Air Cleaner 68-0239EF—05
