MOUNTING
M941A
M942B

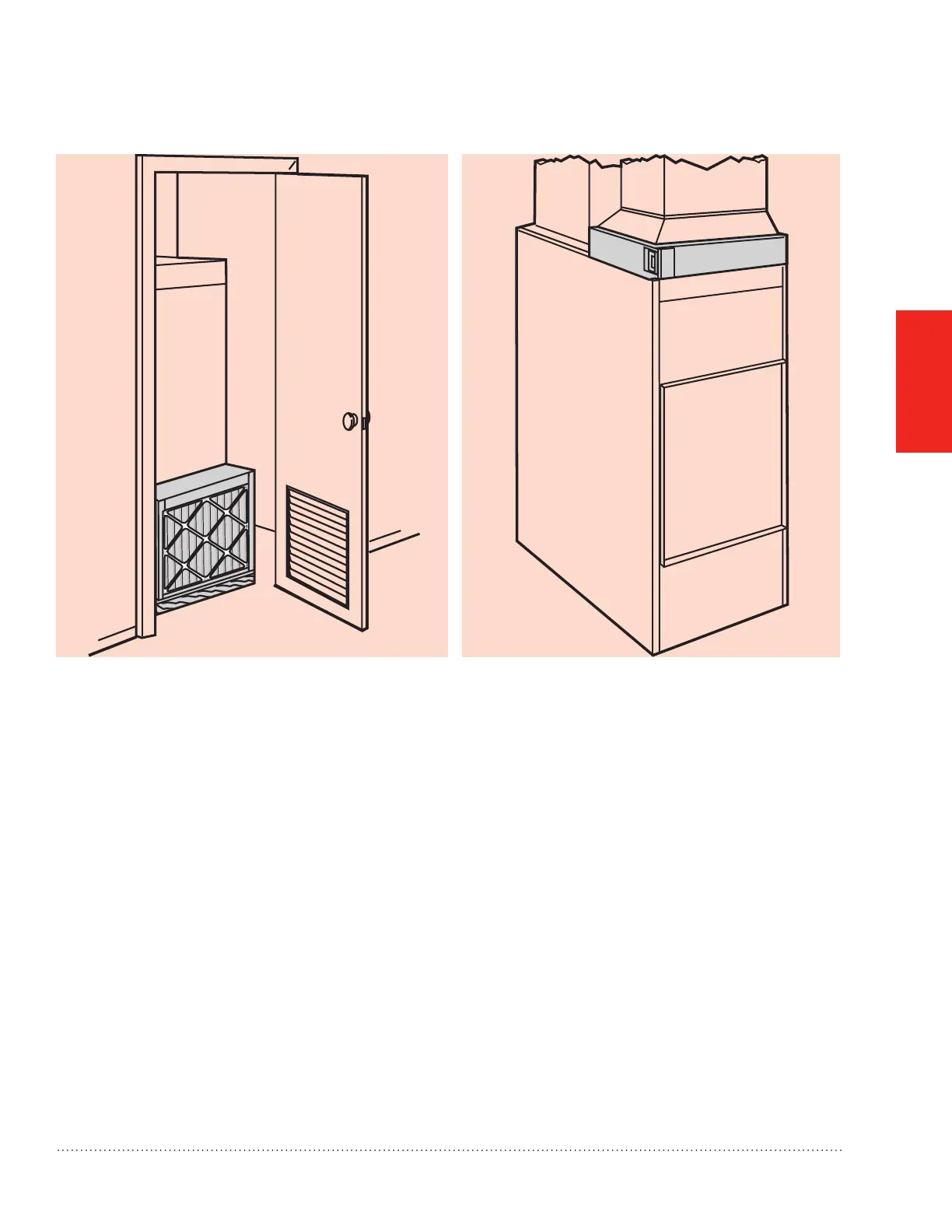

Fig. 3.Highboy furnace, with closet installation. Media air
cleaner is mounted vertically on furnace between
furnace and louvered return air opening in closet door.
Fig. 4. Lowboy furnace, with media air cleaner
mounted horizontally in return plenum just above
furnace and opposite heating plenum.
F100 Media Air Cleaner 68-0239EF—05
7
