F50F DUCT MOUNTED ELECTRONIC AIR CLEANER
68-0137—5
17

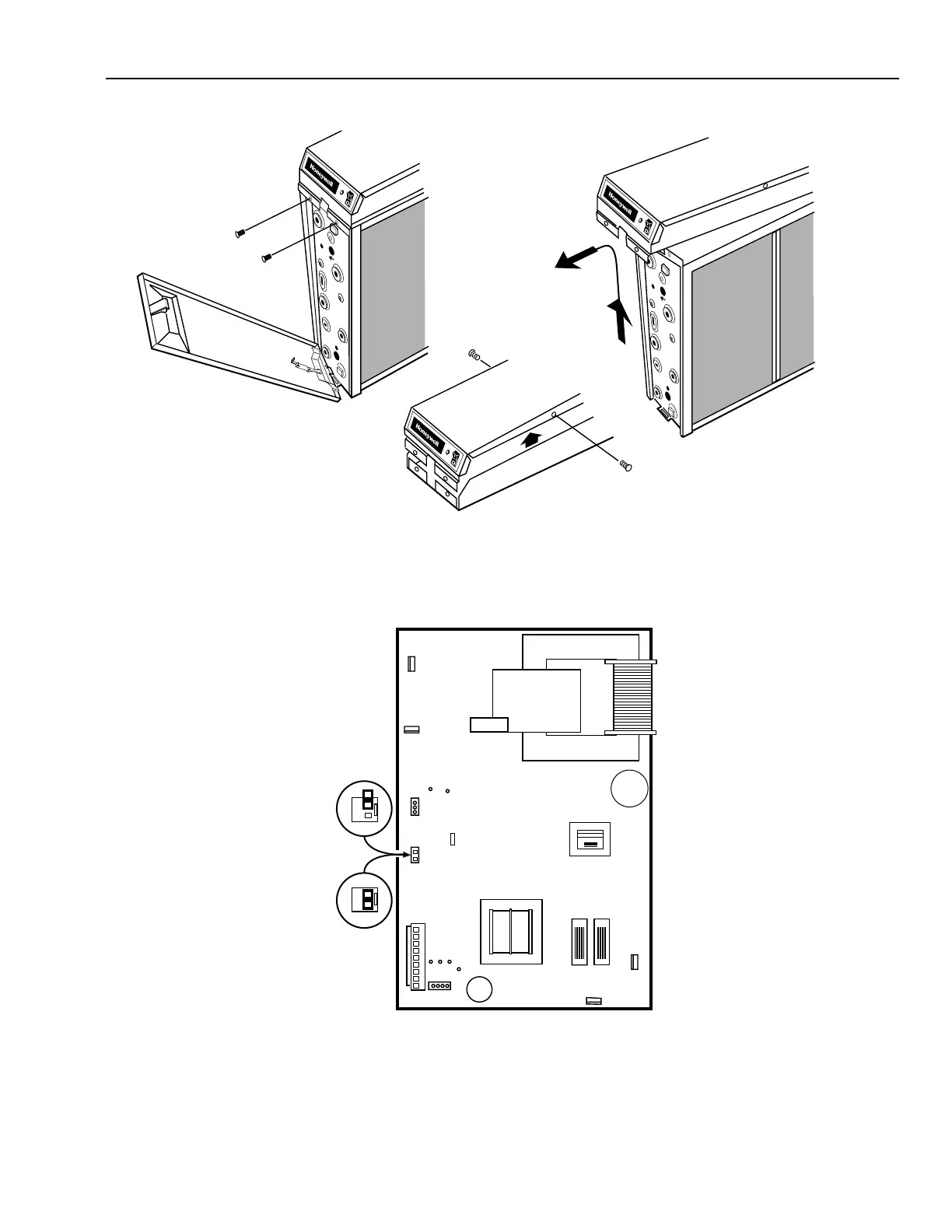

Fig. 25. Move J5 shorting bar to reduce ozone production about 20 to 25 percent.
Fig. 24. Remove power box from air cleaner and remove cover.
4
M6168A
3
1
2
REMOVE POWER BOX FROM AIR CLEANER AND REMOVE THE COVER.
P3
P4
P1
P2
M15099
J3
J4
J5 SHUNT
IN OZONE
REDUCTION
POSITION
J5 IN
NORMAL
POSITION
J1
J5
E4 E3
E1
E5
E6
E2
