Honeywell F50F Product Data

F50F DUCT MOUNTED ELECTRONIC AIR CLEANER
68-0137—5
4
M2872A
F50F SIZE
IN.
16 X 25
16 X 20
20 X 25
20 X 20
20 X 12 1/2
MM
406 X 635
406 X 508
508 X 635
508 X 508
508 X 318
DIM. A
14 7/16
14 7/16
18 7/16
18 7/16
18 7/16
367
367
468
468
468
DIM. B
16 3/16
16 3/16
20 3/16
20 3/16
20 3/16
411
411
513
513
513
23 1/4
18 1/4
23 1/4
18 1/4
10 7/8
DIM. C
591
457
591
457
276
DIM. D
25 1/2
20 1/2
25 1/2
20 1/2
13 1/8
648
521
648
521
333
DIM. C (SEE TABLE)
DIM. D (SEE TABLE)
DIM. B
(SEE TABLE)
DIM. A
(SEE TABLE)
7
8
(22)
5
8
(16)
6
3
4
(172)
7
8
(22)
IN. MM IN. MM
IN. MM IN. MM
DIM. E
(SEE TABLE)
ELECTRONIC AIR CLEANER
3
8
(162)
6
DIM. E
2 3/4
2 3/4
2 3/4
2 3/4
3 5/8
70
70
70
70
92
IN. MM

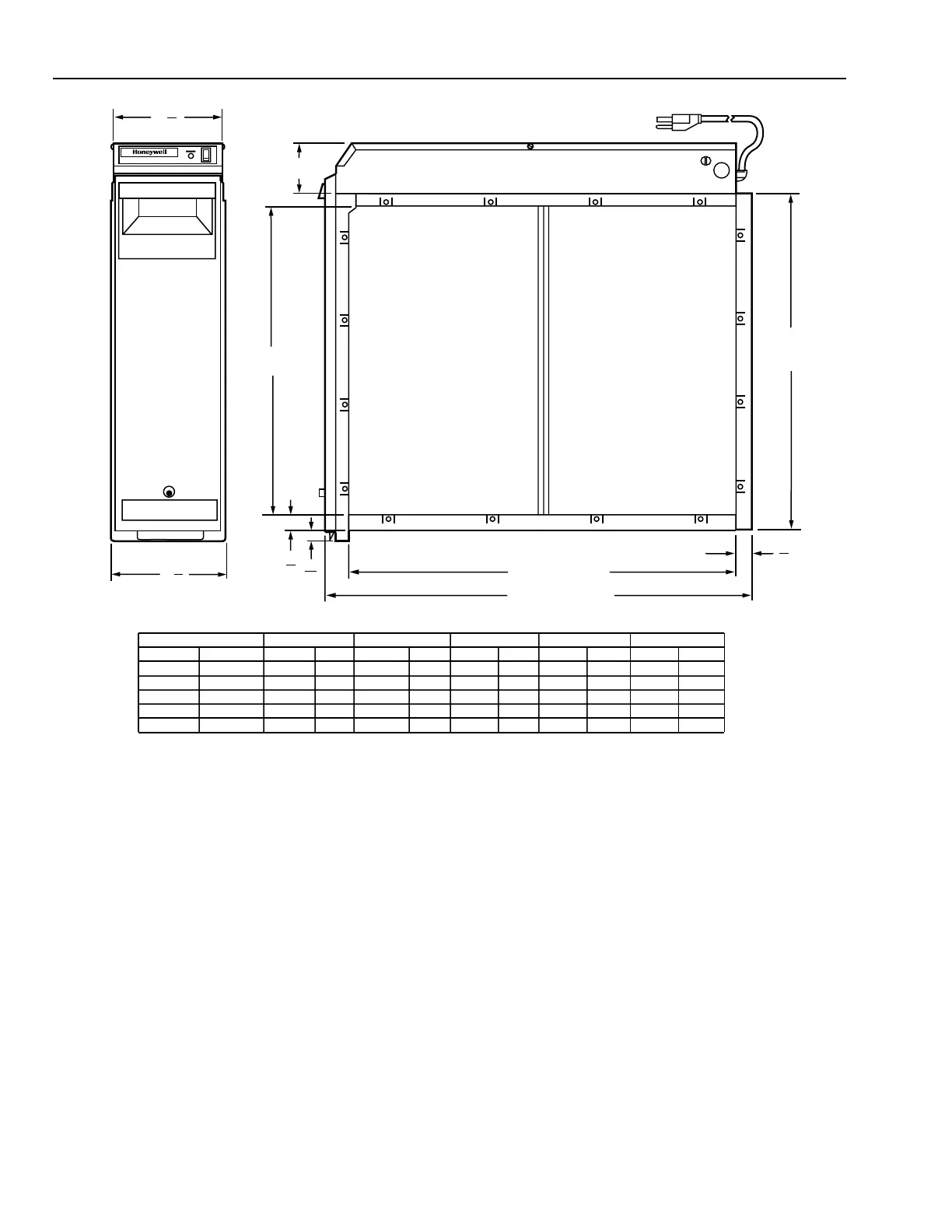

Fig. 2. Installation dimensions of Electronic Air Cleaner in in. (mm).
PLANNING THE INSTALLATION
Application
The is used in a forced air heating, cooling, or ventilating
system. It removes airborne particles from the air circulated
through it. All models have an internal air flow switch to
operate the when the system blower is on.
Review Installation Requirements
The air cleaner should be installed where all the air passing
through the system circulates through it. The best location is
in the return air duct next to the blower compartment so the
air cleaner can help keep the blower motor and evaporator
coils clean.
IMPORTANT
Do not mount in the discharge air duct.
For most efficient air cleaning, airflow must be spread evenly
across the face of the air cleaner. If the duct is a different
size than the air cleaner cabinet, gradual transitions are
recommended. If the duct turns sharply just before the air
cleaner, turning vanes are recommended.
Applications with Air Conditioning
The air cleaner should be installed upstream from the
evaporator coil. The air cleaner will help keep the coil clean,
reducing maintenance.

Honeywell F50F Specifications

General

Brand	Honeywell
Model	F50F
Category	Air Cleaner
Language	English
