Install Turning Vanes
❑ Mount turning vanes inside the elbow or angle fitting that
is directly against the air cleaner cabinet.
Fasten Cabinet To Ductwork
❑ Install a transition when the opening in the air cleaner
cabinet and the duct are different sizes. See Fig. 4.
❑ Fasten the other side of the cabinet to the elbow using
sheet metal screws, rivets, or slip joints as appropriate. If
drilling holes, use locking pliers to help hold the unit in
place during drilling. See Fig. 7.

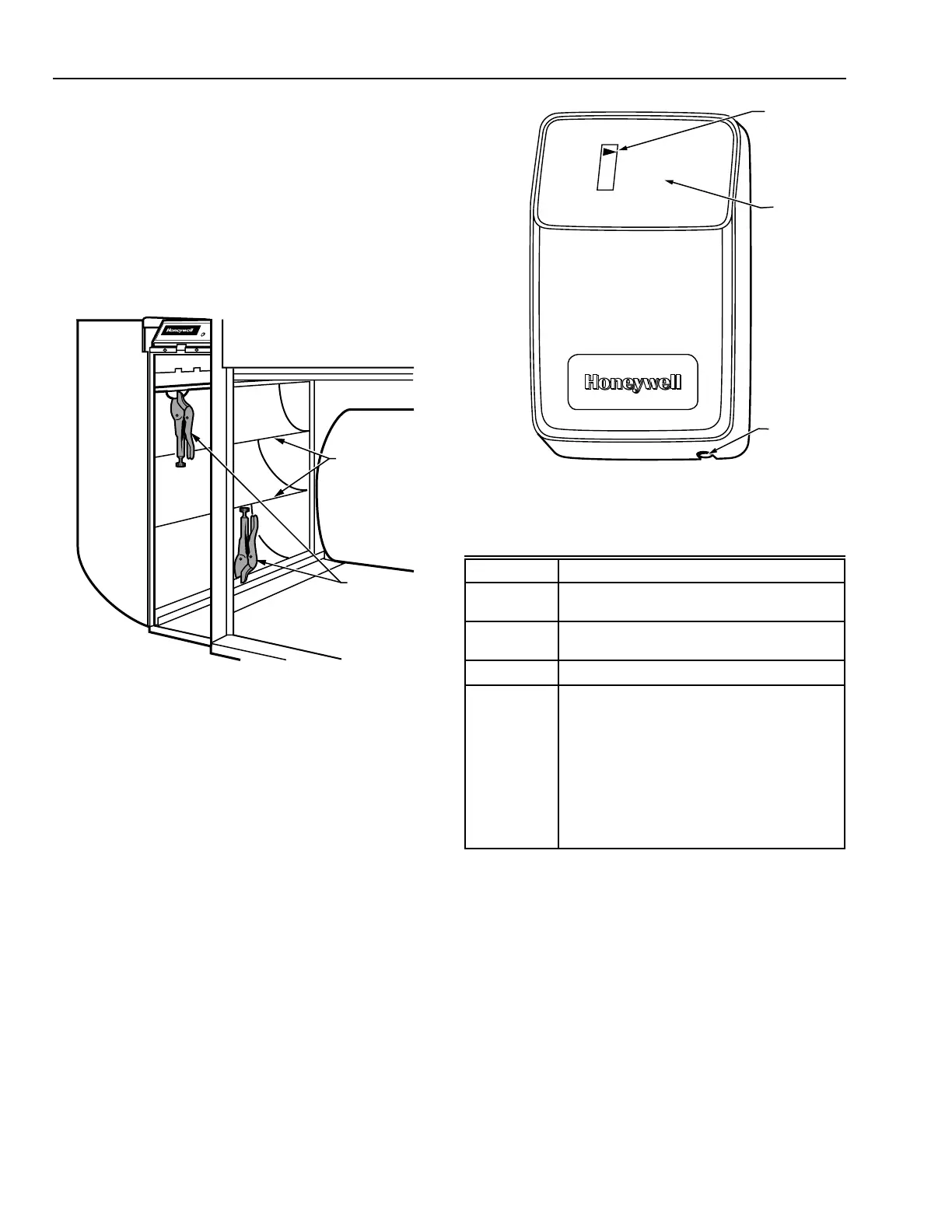

Fig. 8. W8600F Air Cleaner Monitor features.
Table 3. Description of W8600F
Function Indicator Panel.
Fig. 7. Connect ductwork to air cleaner. Note turning
vanes. Locking pliers hold duct to air cleaner cabinet
during installation.
Install Optional W8600F Air Cleaner Monitor
The W8600F Air Cleaner Monitor is an option available for
use with the F50F. The series two requires a solid state power
supply that is compatible with the W8600F driver board. Any
series one F50F can be upgraded to use the W8600F when
the power supply is replaced and the driver board (included in
W8600F kit) is installed.
The W8600F function indicator panel has four liquid crystal
display (LCD) arrowheads that point to ON, BATTERY,
SERVICE or FAULT. See Fig. 8. The arrowheads darken to
indicate the existing EAC condition. See Table 3.
M3677
LOCKING
PLIERS
TURNING
VANES
ON
BATTERY
SERVICE
FAULT
Air Cleaner Monitor
FUNCTION
INDICATOR
PANEL
LCD
RESET BUTTON
M11965
Indicators Condition
ON EAC is powered and system blower is
running.
BATTERY Battery that maintains W8600F memory is
low and needs to be replaced.
SERVICE
EAC prefilter and cells need to be washed
a
.
FAULT • Shorting of collector plates.
•Continuous ionizer or collector plate
arcing.
•Power supply failure.
•Excessive current.
•Major reduction in high voltage.
• EAC prefilter and cells are past
SERVICE level of dirt and need to be
washed immediately.
Call a service technician.
a
The reset button is located on the bottom of W8600F. After
the prefilters and cells are cleaned and reinstalled, press
this button to turn off the SERVICE indicator and reset the
wash frequency timer.
W8600F Location
The styling of the W8600F is designed to blend with the
latest T8600 family of Honeywell Chronotherm® IV Deluxe
Programmable Thermostats. A special mounting template is
included for mounting next to the T8600. The W8600F can
also be mounted at any other convenient location in the
living area or equipment room.
NOTE: The W8600F shares no electrical connections with
the thermostat.
