Accessing the Camera

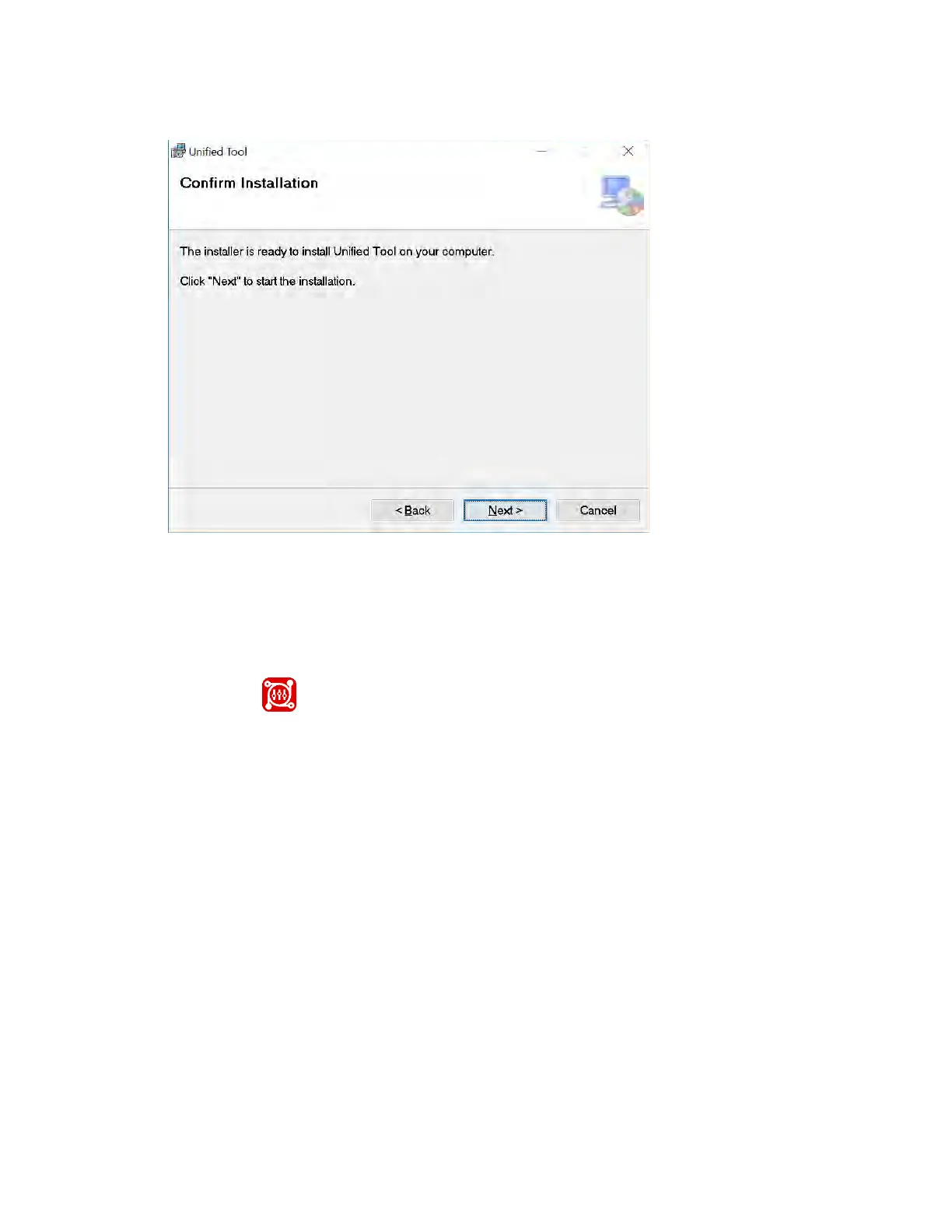

Figure 2-3 Confirm Installation

4. Click Next and the installer will install Unified Tool on your computer. After the installation

is completed, click Close. A shortcut of Unified Tool will be displayed on the desktop.

Discovering Your Camera on the Network

Double-click on the desktop and the following figure is displayed:

Main Page
