Before You Begin
Before you begin, check that you have received all of the parts listed below. If any
parts are missing or damaged, contact your dealer immediately.
• Camera
• Installation CD
• Quick installation guide
• Self-tapping screws (×4)
• Plastic wall anchors (×4)
• Mounting template
Required tools
• Phillips screwdriver
• Drill with appropriate bit for pre-drilling wall anchor holes
CAUTION Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your
warranty.
Removing the Camera from the Base
Loosen the locking screw on the camera enclosure to remove the enclosure from the
camera base. Set the camera body aside.
Preparing the Mounting Surface
1. Place the mounting template where you want to install the camera.
2. Drill four (4) holes in the mounting surface for the wall anchors, then insert the
wall anchors.
3. Drill an appropriately sized hole and pull the cables through the mounting surface.
Mounting the Camera
1. Route the cables through the camera base.
2. Align the screw holes on the camera base with the plastic wall anchors.
3. Attach the camera base to the mounting surface using the supplied screws.
Installing and Adjusting the Camera
1. Connect the Ethernet cable to the RJ-45 port on the camera.
2. If the other end of the Ethernet cable is NOT connected to a PoE switch or NVR,
connect the power connector of the camera to a 12 VDC power source.
3. Reattach the enclosure to the base and tighten the locking screw.
4. Rotate the camera body to the desired position.
Logging On to the Camera
If the camera is connected to the PoE port of a Honeywell Embedded NVR, you can
log on to the camera directly from the NVR.
To log on to the camera from a PC:
1. Install the Honeywell Config Tool from the installation CD.
2. Use the Config Tool to discover the camera and open the camera’s webpage.
3. Log on to the camera as the admin user. The default user name is admin (case-
sensitive) and the default password is 1234.
Note Only Internet Explorer 11 and Firefox 46.0.1 (or later) browsers are supported.
www.honeywell.com/security
+1 800 323 4576
(North America only)
www.honeywell.com/security/uk
+1 44 (0) 1928 754 028
(Europe only)
www.asia.security.honeywell.com
+86 21 221 96888
(Asia Pacific only)
Document 800-22219 – Rev A – 06/2016

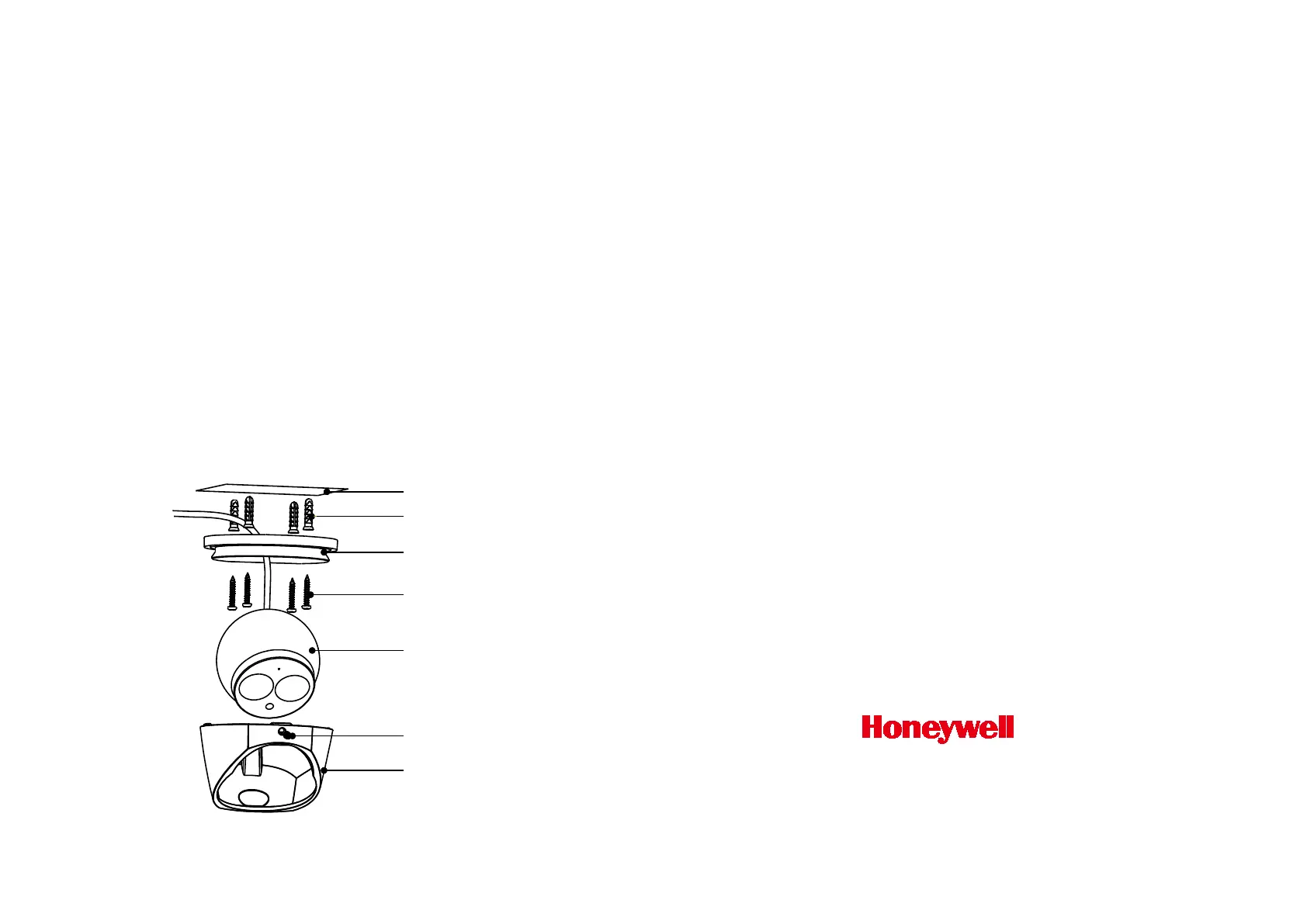

Ceiling or wall
Plastic wall anchors
Camera base
Self-tapping screws
Camera body
Locking screw
Enclosure
