HM700A1000
5 33-00162—01
INSTALLATION CHECK
Before turning on power to the HM700, inspect the installation to ensure that it was carried out correctly.

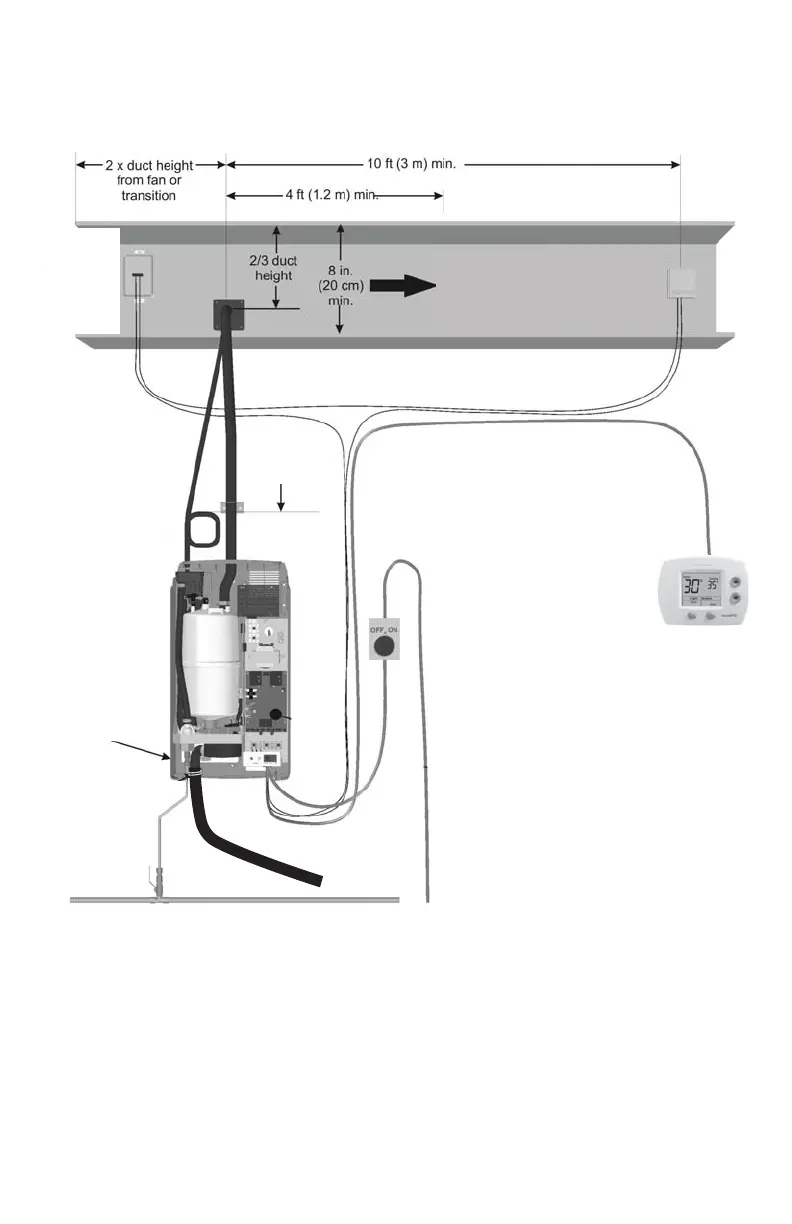

Fig. 4. Installation check.
Fused Disconnect
Correct voltage / amps /
phase per spec label
(optional)
Mounting
- Unit level
- Screws into
structural member
Steam Line
- Adequate slope
- No restrictions
- No kinks in hose
- Condensate traps
on long runs
High Limit
On/Off
(optional)
In series between
terminals 1 and 2.
Jumper between terminals
1 and 8 must be removed.
Note:
U or HUM terminals in series
between terminals 1 and 2
Humidity Control
in return duct or
location which
represents humidified
space (no drafts, not
by door, not by
diffuser)
Air Proving
(optional)
In series between
terminals 1 and 2.
Jumper between
terminals 1 and 8
must be removed.
1/2 in. line (minimum) to within 4 ft (1.2 m)
30-100 PSIG
Spec Label
Air Gap
P Trap
with 12 in (30 cm)
minimum drop
Bend, or other
obstruction
