Honeywell HPZC103 User Manual

HPZC10*
33-00360EF—05 2

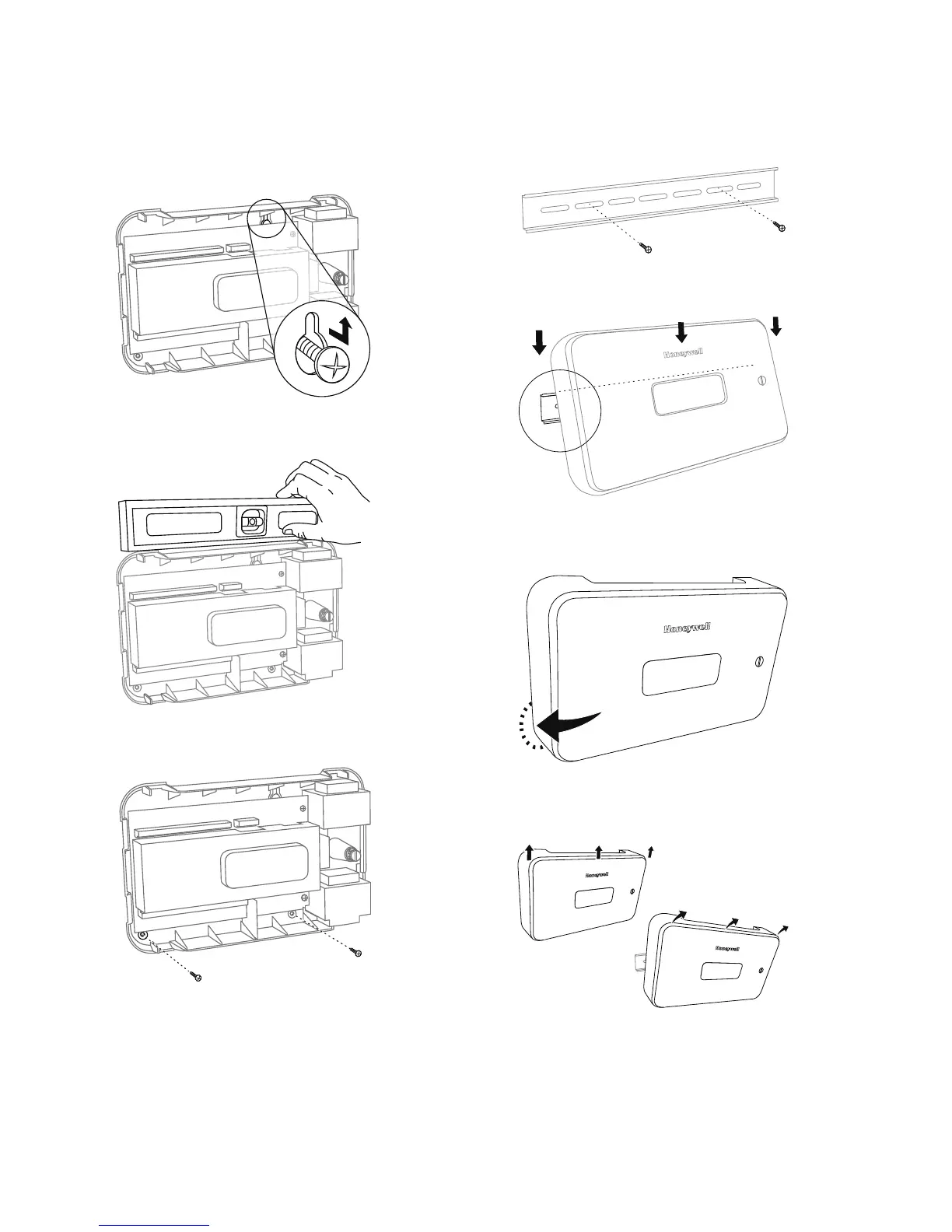

MOUNTING
Hang Hole Flow
1. Hang the panel on a wall-mounted screw.
Fig. 1.
2. Level the panel.
Fig. 2.
3. Put the 2 bottom screws in.
Fig. 3.
Din Rail Flow
1. Mount the DIN rail as specified by DIN rail manufac-
turer.
Fig. 4.
2. Hang panel by the tabs on the rail’s top edge.
Fig. 5.
3. Snap into rail by pressing the bottom of panel
against the wall.
Fig. 6.
4. To remove, lift up on panel and pull the top away
from the wall.
Fig. 7.
M37083
M37084
M37085
M37086
M37087
M37088
M37089
