Perform Walk Test
9
Install Cover Locking Screw
IS335-011-V0
45 sec
30
0
45
20
10
IS335-015-V0

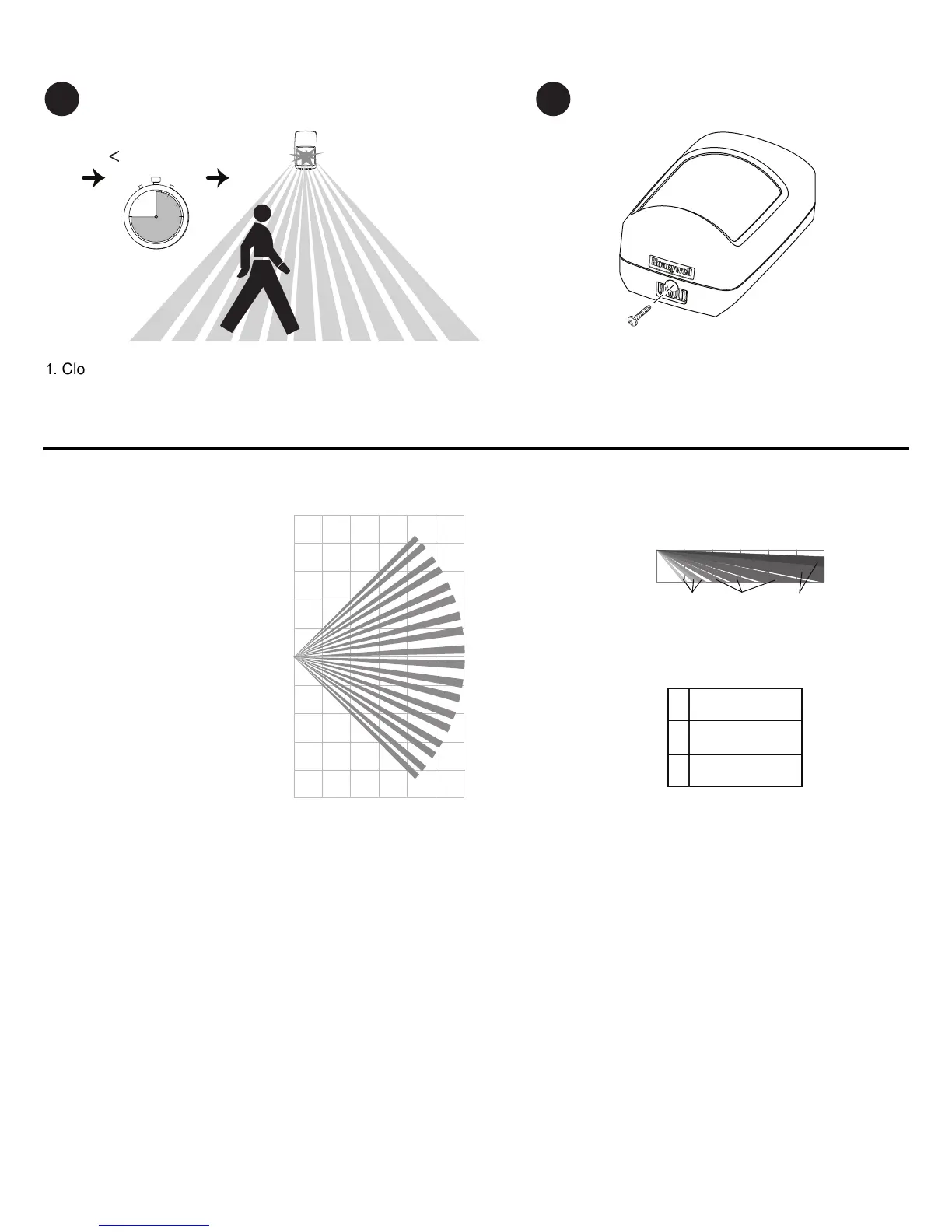

1. Close the sensor and apply power to the sensor. Initialization is complete when the LED stops flashing slowly (less than
45 seconds).
2. Walk through the detection area and observe the LED.
Detection Patterns
PLAN VIEW
ALL ZONES
A B C
7.5ft
(2.3m)
0ft
(0m)
7ft
(2m)
13ft
(4m)
20ft
(6m)
27ft
(8m)
33ft
(10m)
40ft
(12m)
13ft
(4m)
0ft
(0m)
7ft
(2m)
13ft
(4m)
20ft
(6m)
27ft
(8m)
33ft
(10m)
40ft
(12m)
7ft
(2m)
0ft
(0m)
7ft
(2m)
13ft
(4m)
20ft
(6m)
20ft
(6m)
27ft
(8m)
33ft
(10m)
27ft
(8m)
33ft
(10m)
Top View Side View
Zones
A
18
Lower
B 46 Intermediate
C
36 Long
IS335-009-V0
