The GBST supports the screen layouts for both the standard ARINC 739 14 line MCDU/MIDU as well as
supporting Honeywell’s 9 line CDU (used on various aircraft types such as the Embraer 135/145, and
others). Figure 14 shows an example Main Menu on a 9 line CDU.

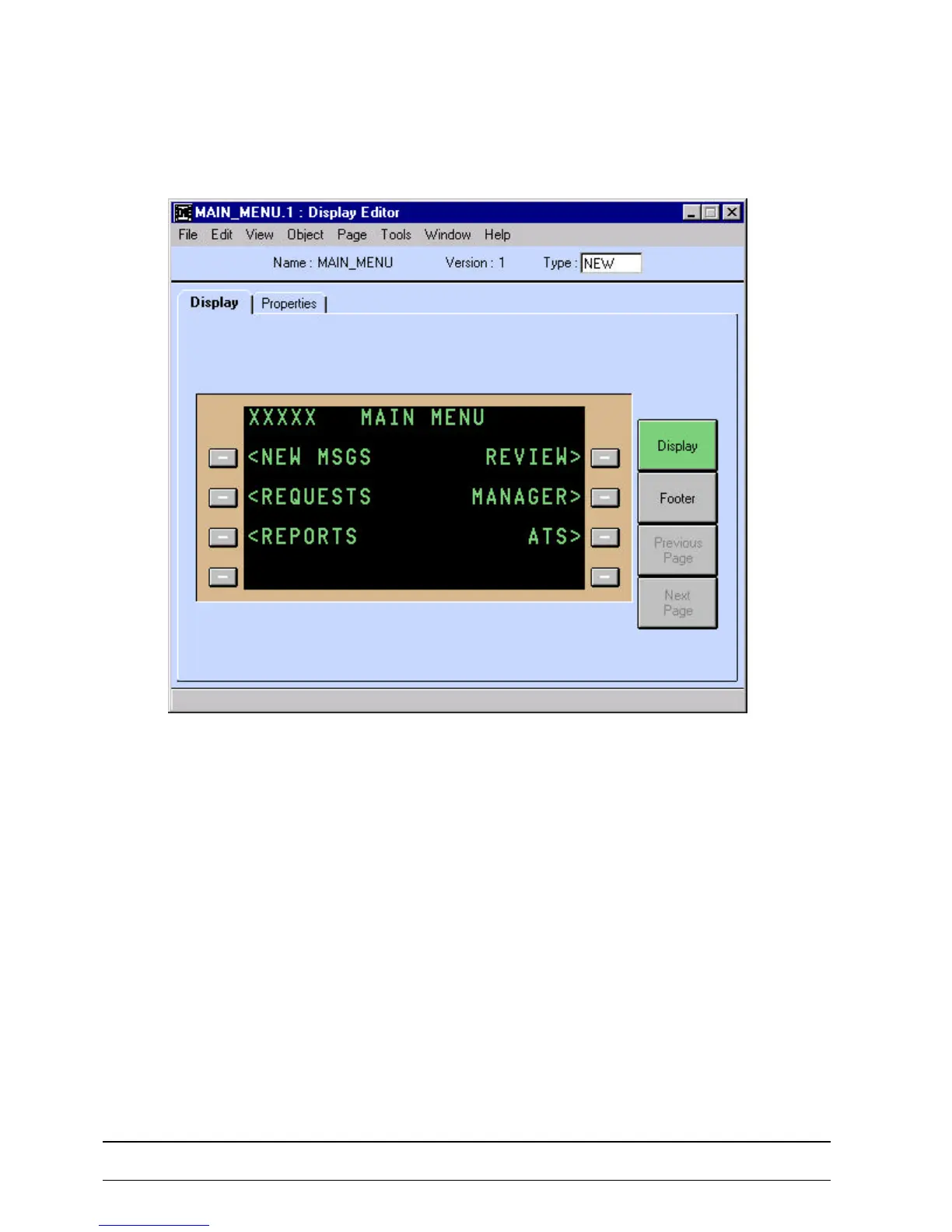

Figure 14 CDU Main Menu (Supporting Regional / Business Jet CDUs)
