MCV2000 SERIES HYDRONIC VALVE
ENS5001R2 KO06 2005 3
< 1/2” valve >
< 1” valve >
< 3/4” valve >
< 1 1/4 ” valve >

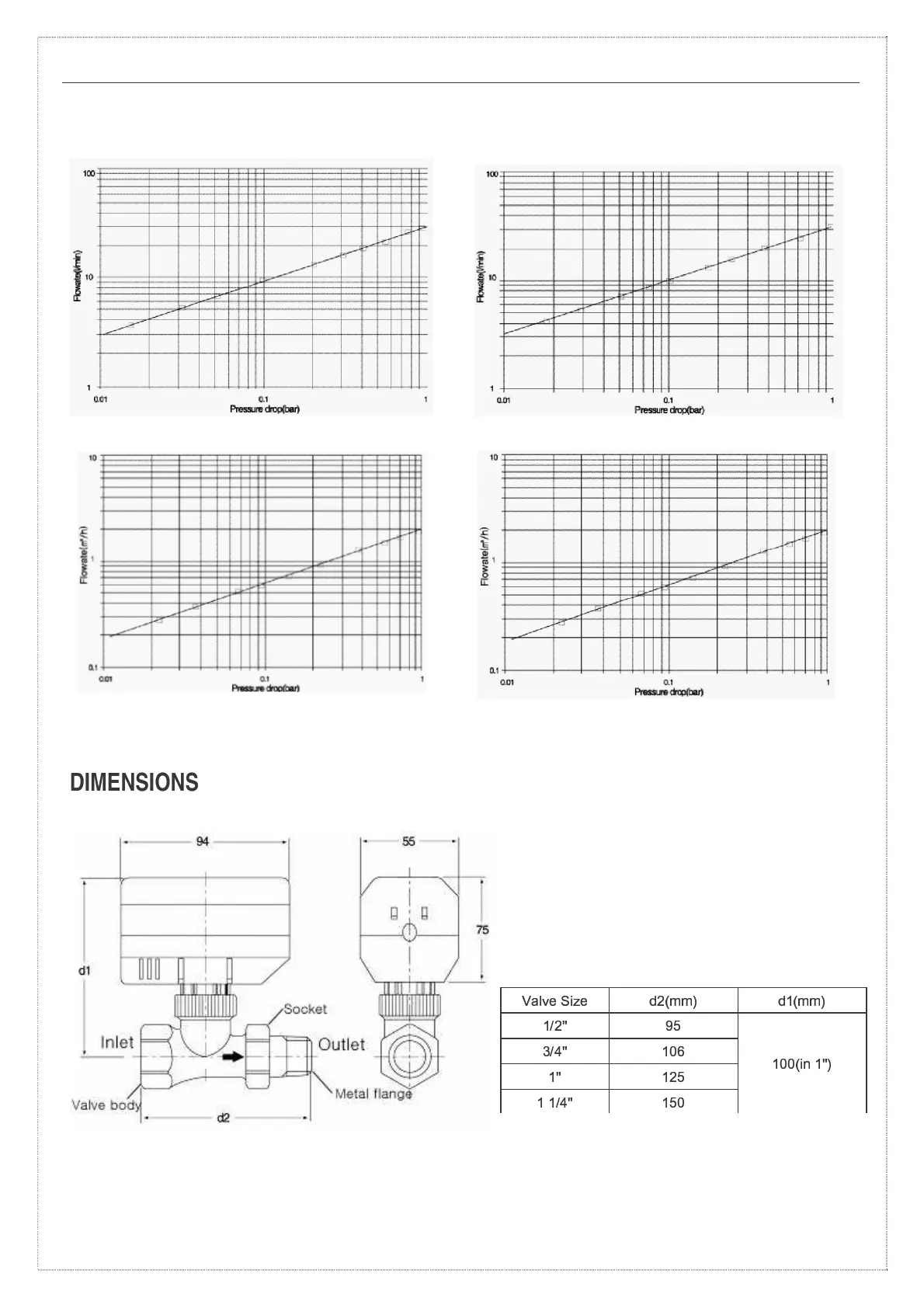

Fig. 1 Valve Pressure Loss Characteristic for 2-way Valves
Fig. 2 MCV Valve Dimensions (in mm)
    
  
   !
" 
"  
"   #$
DIMENSIONS
