ML6984, ML7984 SERIES 4000 DIRECT COUPLED VALVE ACTUATORS
95C-10939—11 6

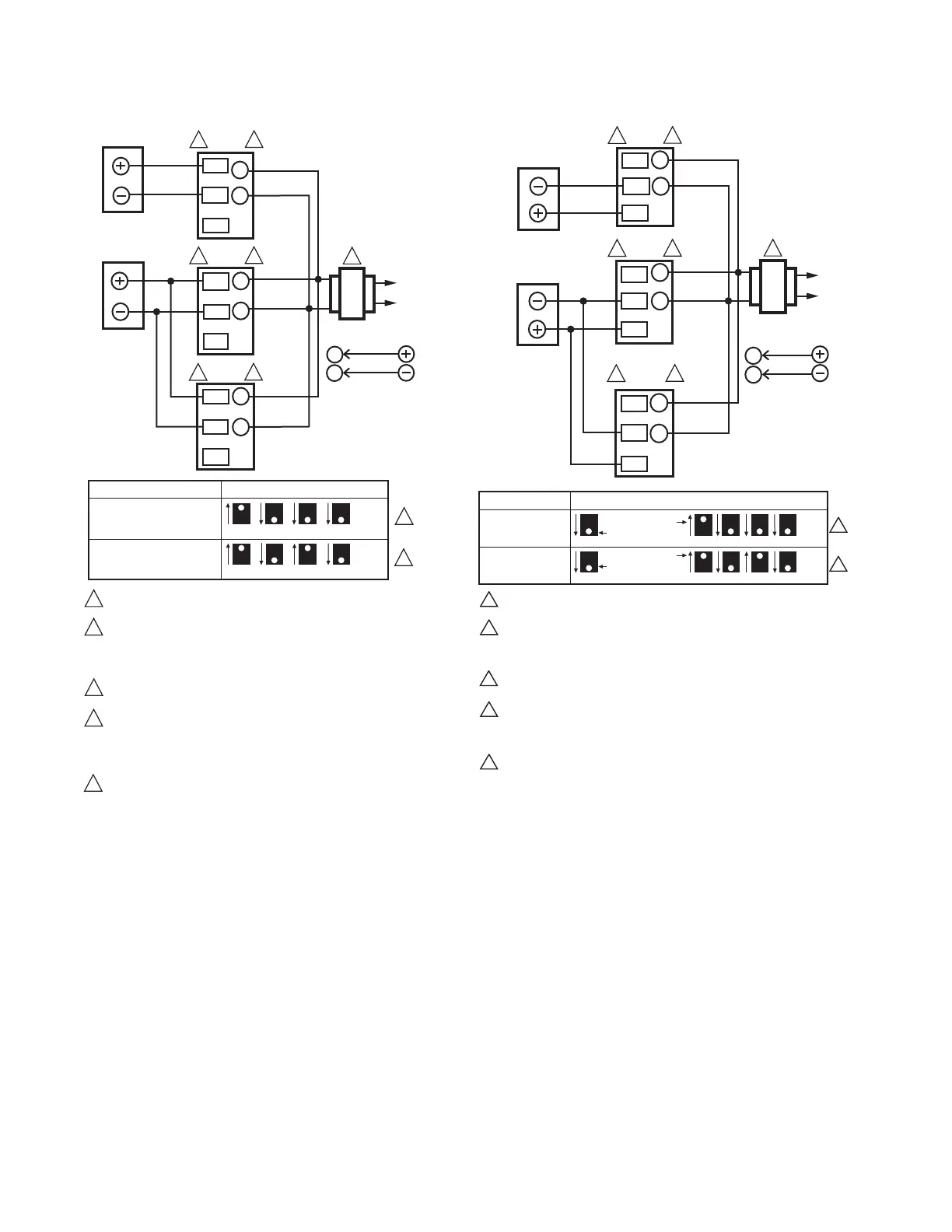

Fig. 11. ML7984 Wiring with 10 Vdc Analog Control
Signal.
Fig. 12. ML7984 Wiring with 20mA Analog Control
Signal.
4
5
M25495A
1
T5
T6
L1
L2
24 VAC
28 VDC
ML7984
ML7984
ML7984
R
R
R
W
W
W
C
C
C
T5
T6
T6
T6
T5
T5
OR
SIGNAL
SOURCE
FUNCTION DIP SWITCH CONFIGURATION
1000
2-10 VDC DIRECT ACTING
1
2
3 4
ON (1)
OFF (0)
1
2
3 4
ON (1)
OFF (0)
POWER SUPPLY PROVIDES OVERLOAD PROTECTION AND
DISCONNECT MEANS.
ALLOW UP TO 0.5 AMPS FOR EACH DEVICE. ACTUATORS AND
CONTROLLER CAN SHARE SAME TRANSFORMER PROVIDING THE VA
RATING OF THE TRANSFORMER IS NOT EXCEEDED AND PROPER
PHASING IS OBSERVED. DO NOT MIX A.C. AND D.C. POWER
SOURCES.
IN ML7984, “T5” AND “W” TERMINALS ARE CONNECTED INTERNALLY.
DEVICE IS COMPATIBLE WITH 3 CONDUCTOR WIRING.
USE CONFIGURATION DIP SWITCHES TO SELECT DEVICE FUNCTIONS:
DIRECT ACTING FUNCTION (ACTUATOR STEM MOVES DOWNWARDS
WITH SIGNAL INCREASES TO 10V/20MA) OR REVERSE ACTING
FUNCTION (ACTUATOR STEM MOVES UPWARDS WITH SIGNAL
INCREASES TO 10V/20MA).
ALWAYS TURN POWER OFF BEFORE SETTING ANY DIP SWITCHES.
1
2
3
4
5
3
2
1010
10-2 VDC REVERSE ACTING
3
2
3
2
M25496A
T5
T6
L1
L2
28 VDC
ML7984
R
W
C
T5
T6
OR
SIGNAL
SOURCE
C
R
W
T5
T6
ML7984
ML7984
(SLAVE)
R
W
C
T5
T6
24 VAC
FUNCTION DIP SWITCH CONFIGURATION
X000
4-20 MA DIRECT ACTING
X010
20-4 MA REVERSE ACTING
1
2
3
4
ON (1)
OFF (0)
1
2
3
4
ON (1)
OFF (0)
POWER SUPPLY PROVIDES OVERLOAD PROTECTION AND DISCONNECT
MEANS.
ALLOW UP TO 0.5 AMPS FOR EACH DEVICE. ACTUATORS AND CONTROLLER
CAN SHARE SAME TRANSFORMER PROVIDING THE VA RATING OF THE
TRANSFORMER IS NOT EXCEEDED AND PROPER PHASING IS OBSERVED. DO
NOT MIX A.C. AND D.C. POWER SOURCES.
IN ML7984, "T5” AND “W” TERMINALS ARE CONNECTED INTERNALLY. DEVICE
IS COMPATIBLE WITH 3 CONDUCTOR WIRING.
USE CONFIGURATION DIP SWITCHES TO SELECT DEVICE FUNCTIONS: DIRECT
ACTING FUNCTION (ACTUATOR STEM MOVES DOWNWARDS WITH SIGNAL
INCREASES TO 10V/20MA) OR REVERSE ACTING FUNCTION (ACTUATOR STEM
MOVES UPWARDS WITH SIGNAL INCREASES TO 10V/20MA).
ALWAYS TURN POWER OFF BEFORE SETTING ANY DIP SWITCHES.
1
1
MASTER ACTUATOR
SLAVE ACTUATOR
3
2
3
2
3
2
1
4
5
1
2
3
4
5
MASTER ACTUATOR
SLAVE ACTUATOR
