3EN
INSTALLATION
It is important that the installation instructions below are followed for successful installation of this
Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries
regarding these installation procedures.
5
1 3
x1
x1
x1 x1
Installation Kit:
Installation Steps:
Exhaust hose and exhaust hose connector are pre-assembled inside the package. Install the
exhaust hose with the window bracket adapter on the other side.
1.
2.
The Window Brackets are approximatley 50 cm / 19.7 inches each, allowing you to install to
windows and balcony doors of different heights or width.
Adjustable Knobs
19.7"
50cm
1 part

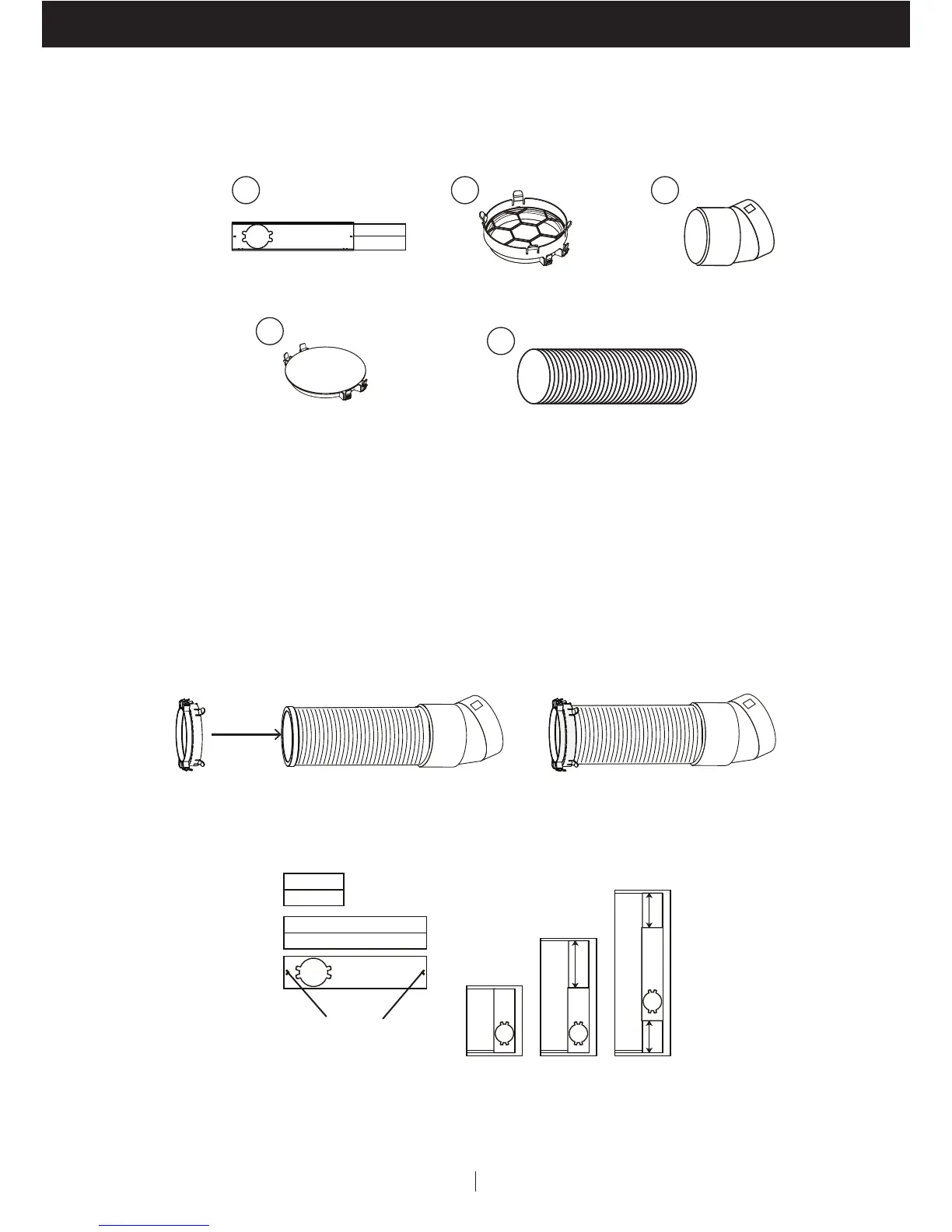

1. Window Bracket Kit (1 Set) 4. Hole Cover (1 Piece)
2. Window Bracket Panel Adapter (1 Piece) 5. Exhaust Hose (1 Piece)
3. Exhaust Hose Connector (1 Piece)
=
50cm / 19.7"
to
97cm / 38.2"
2 parts
1.2m / 47.2"
3 parts
2
4
x1
To install the window bracket to the window frame, you need to adjust the height or width of the window bracket by
extending the length according to the height or width of the window. When the length is set, tighten the Adjustable
Knobs (preinstalled on the window bracket) to ensure the window bracket is secured in the desired position. Use one
or all two pieces of window bracket as needed.
To Next Page
