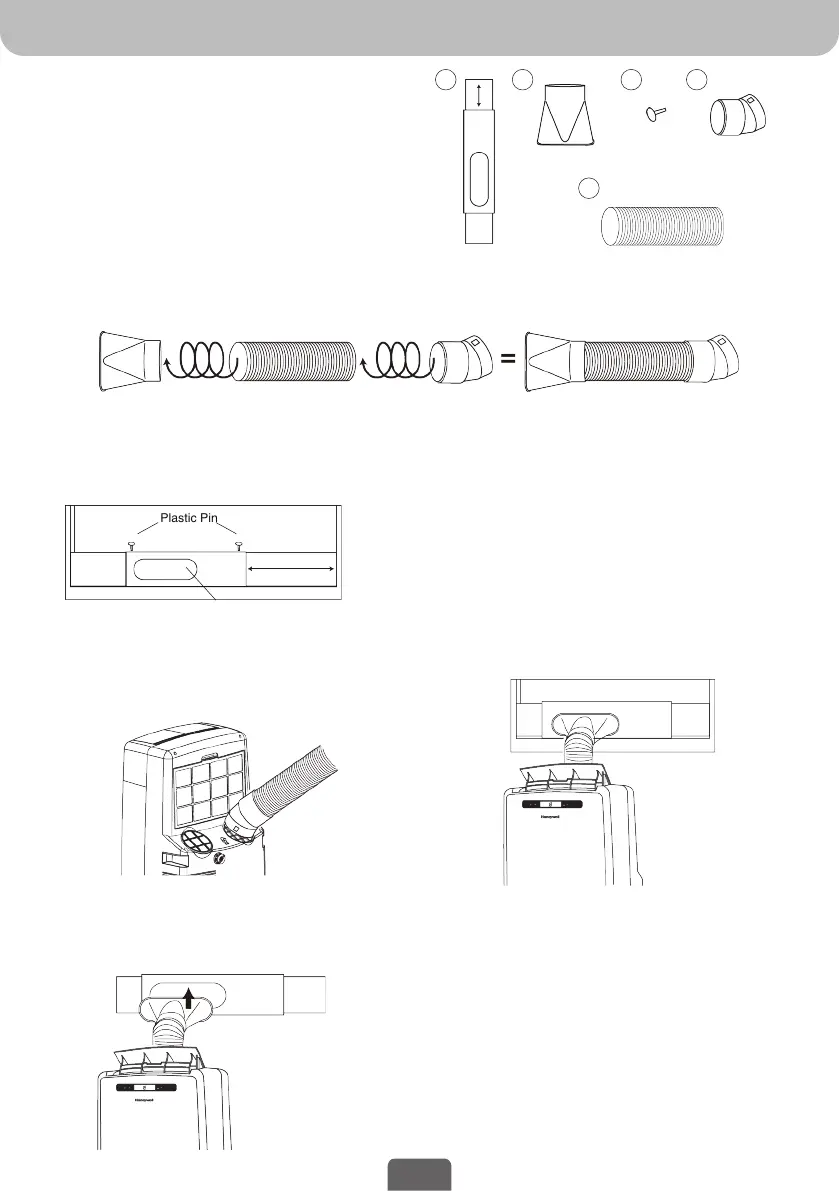

1. Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
2. Adjust the window bracket as per width or height of your window and insert the plastic pins to fix at
the desired position. There is a hole where the Plastic Hose will be inserted later. Make sure this hole
is not blocked.
3. Connect the plastic hose to the hose
connector on back of the unit.
Push-in until it
is locked in place.
4. Connect the window bracket to the opposite
end of the plastic hose. Ensure that all
connections are tight and installed properly.
Note:
Do not install the window bracket to your window. This
step is required only to adjust it to the size of your
window. The bracket should be removed from the
window after the size is adjusted.
INSTALLATION
1.
2.
3.
4.
5.
Window Bracket Kit.............................
Window Bracket Panel Adapter...........
Plastic Pin............................................
Hose Connector..................................
Plastic Hose........................................
3
Installation
Kit:
Installation Steps:
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
Plastic Pin
Hole for Plastic Hose
5. Connect the window bracket to the window.
6. The Portable Air Conditioner is now ready to
use.
1
2
5
3
x 1
x 1x 1
x 2 x 1
4
To Next Page
