INSTALLATION (CONTINUED)
IMPORTANT:
• Do not replace or lengthen the exhaust hose as this could cause the unit to malfunction.
WARNING: Any warranties included with this product will be voided if an extra extension hose is added
to the originally provided installation kit or if the installation is performed differently than the manufactur-
er's instructions, without proper consultation. Please contact Customer Support for help with installation
procedures if needed.

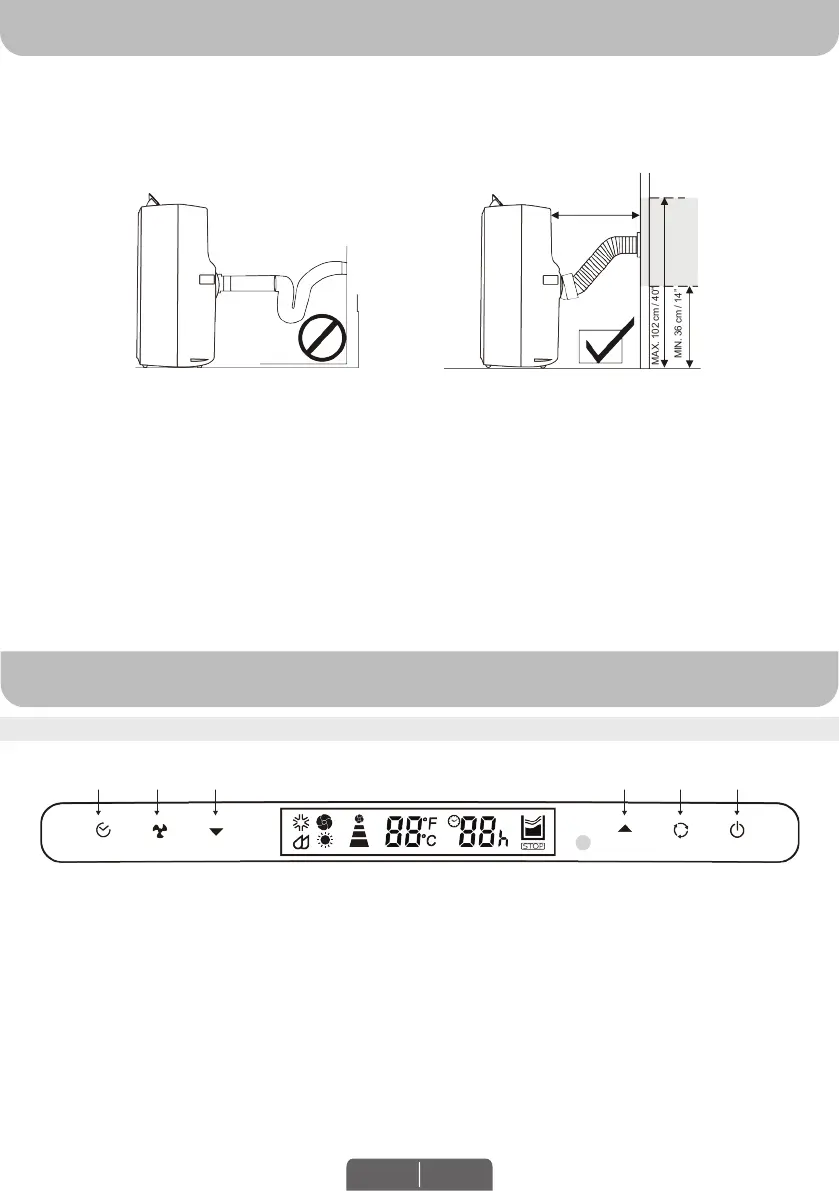

RECOMMENDEDNOT RECOMMENDED
•
•
•
USE & OPERATION
TOUCH SCREEN CONTROL PANEL
POWER CONTROL
The Power Control turns the unit on and off. When the unit is plugged in, this button lights up indicating
it is in a Standby Mode ready to be switched on anytime.
(1)
(4)
Timer Control
Mode Control
(2)
(5)
Fan Speed Control
Power Control / Standby Mode
(3)
(6)
Timer / Temperature Set Controls
Warning Light (when flashing)
MIN. 36 cm / 14”
MAX. 102 cm / 40”
EN 4
The supplied exhaust hose has a diameter of 5 inches (12.7cm) and can be extended from 12 inches
to 47 inches (30cm to 120cm).
Do not bend (to the extent shown below) the exhaust hose. A bent hose will block exhaust air and
cause the unit to malfunction or shut-off.
Make sure the back of the unit is at least 50 cm / 20 inches away from the wall. Do not place the unit
in front of curtains or drapes as this could obstruct the airflow.
(1) (2) (3) (3) (4) (5) & (6)
MIN 35.6 cm
50 cm / 20”
*Applicable for models with Heating feature only.
