Honeywell PX6ie - Page 93

PX4ie and PX6ie High Performance Printer User Guide 83

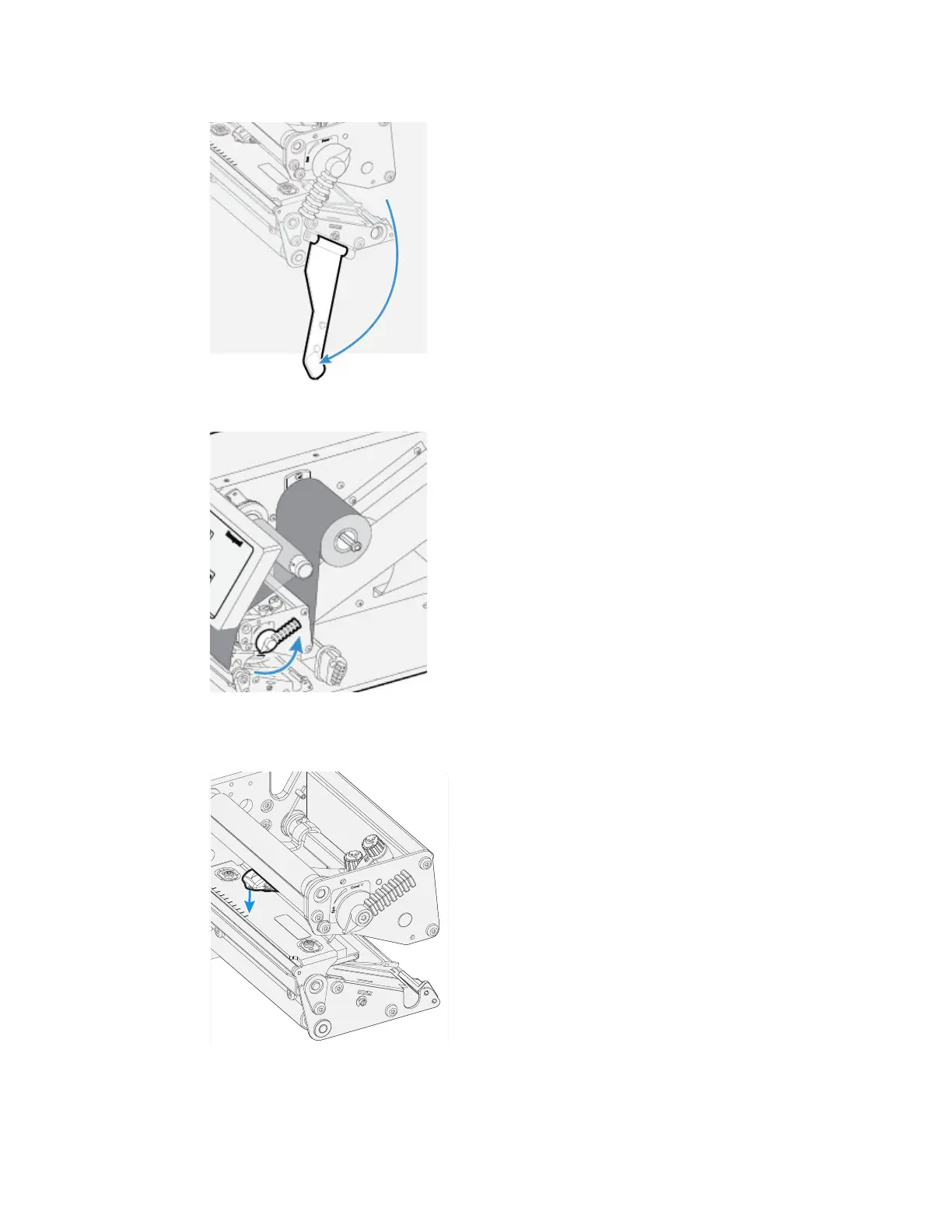

3. Pull the locking handle down (PX6ie only)
4. Turn the printhead lift lever counterclockwise to raise the printhead.
5. Remove any media and transfer ribbon.
6. Pull the printhead bracket away from the magnet in the pressure arm.
