Honeywell RPLS730B User Manual

12

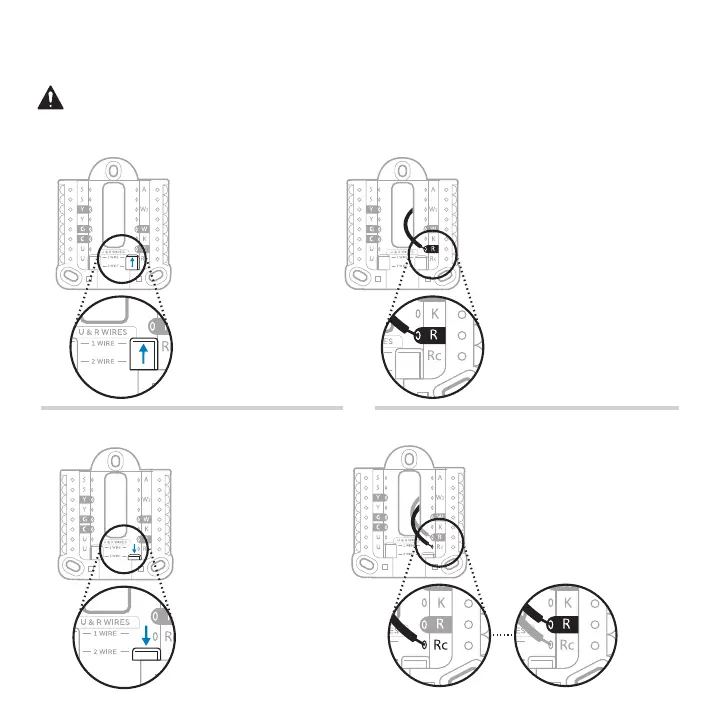

12 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
If you have 1 R-wire (R, Rh, or Rc)
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch to
the up position.
1. Set R-switch
to the down
position.
2. Insert your R-wire
(R, Rh or Rc) into
R-terminal.
2. Insert your Rc wire
into Rc-terminal.
3. Insert your R or Rh
wire into RTerminal.

Honeywell RPLS730B Specifications

General

Type	Programmable Switch
Voltage	120 VAC
Programming	7-day programmable
Battery Backup	Yes
Color	White
Number of Buttons	1
Mounting Type	Wall Mount
Material	Plastic
Load Type	Incandescent, Halogen
Weight	4.8 ounces
