RTH2310 Programmable Thermostat
6
1) Match each labeled wire with the terminal having
the same letter.
2) Loosen the terminal screws using a screwdriver,
insert the wires, then tighten the screws.
3) Push any excess wire back into the wall opening.
5

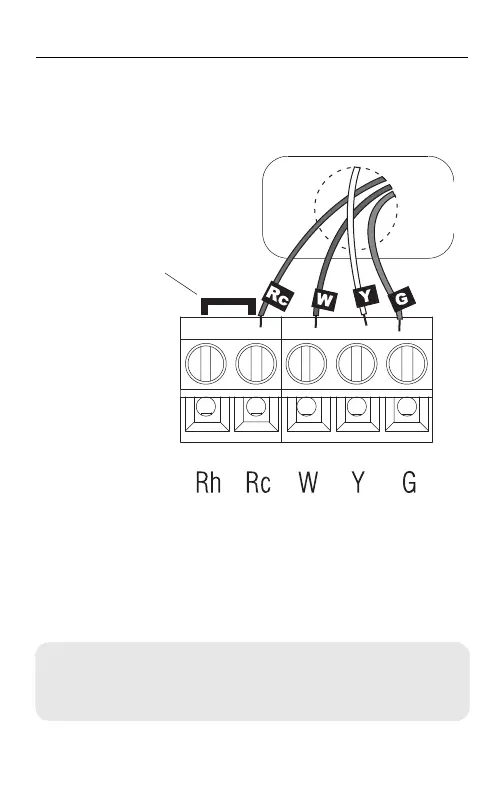

Connect Wires (typical wiring)
5.
Remove jumper
if you have both
R and Rc wires.
Labels don’t match?
If a wire does not match any terminal on the thermostat,
see next page.
