69-2602EF — 01 6
M32715
SCREW
INSERT WIRES
AND TIGHTEN
SCREWS
WIRE
HOLE
LABELED
WIRES
W/
Aux
W
Y
G
R
Not
Used

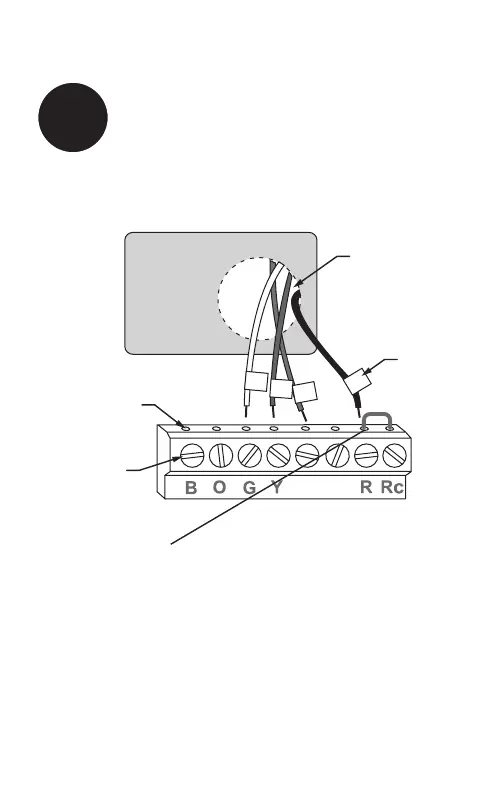

Connect Wires
6
Simply match wire labels.
Remove metal jumper if you have both R and Rc wires.
Labels don’t match? See page 22.
Have a Heat Pump system? See page 23.
We are here to help.
Call 1-800-468-1502 for wiring assistance.

Table of Contents

Other manuals for Honeywell RTH2510 Series

Preview: Operating Manual
Operating Manual52 pages
Preview: Operating Instructions
Operating Instructions48 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell RTH2510 Series and is the answer not in the manual?

Honeywell RTH2510 Series Specifications

General IconGeneral
Display TypeDigital
ProgrammableYes
Power SourceBattery
Battery TypeAA Alkaline
Number of Batteries2
Temperature ControlDigital
CompatibilitySingle Stage Heating and Cooling Systems
Stages1 Heat/1 Cool
Voltage24V
Temperature Range40°F to 90°F (4°C to 32°C)
Programming Options7-Day, 5-2 Day
DisplayBacklit
Weight0.5 lbs (227 g)
