Honeywell RTH5100B Installation Instructions

69-1716 10

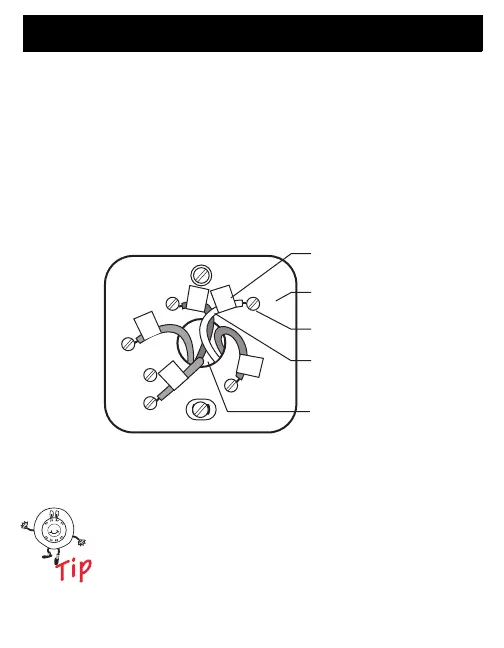

Step 5. Label Old Thermostat Wires
1. As you disconnect each wire, use the enclosed wire
labels to wrap a wire label around each wire that
matches the letter designation. Do not allow the
wires to fall into the wall opening after the wires
are disconnected.
2. Remove any remaining parts of the old thermostat
from the wall.
When connecting the wires to the new
thermostat, refer to the wire labels. Do not
connect wires to your new thermostat based
on the color of the wire.
Y
G
R
C
R
OL D T H E R M OST A T
WIRE HOLE
M22039
WIRE
SCREW
TERMINAL
LETTER
DESIGNATION
WIRE LABEL
W
W
G
Y
R
RC

Honeywell RTH5100B Specifications

General

Brand	Honeywell
Model	RTH5100B
Category	Thermostat
Language	English
