14 TK_S014 – Installation Manual
WIRING OPERATION
Elemental Detail

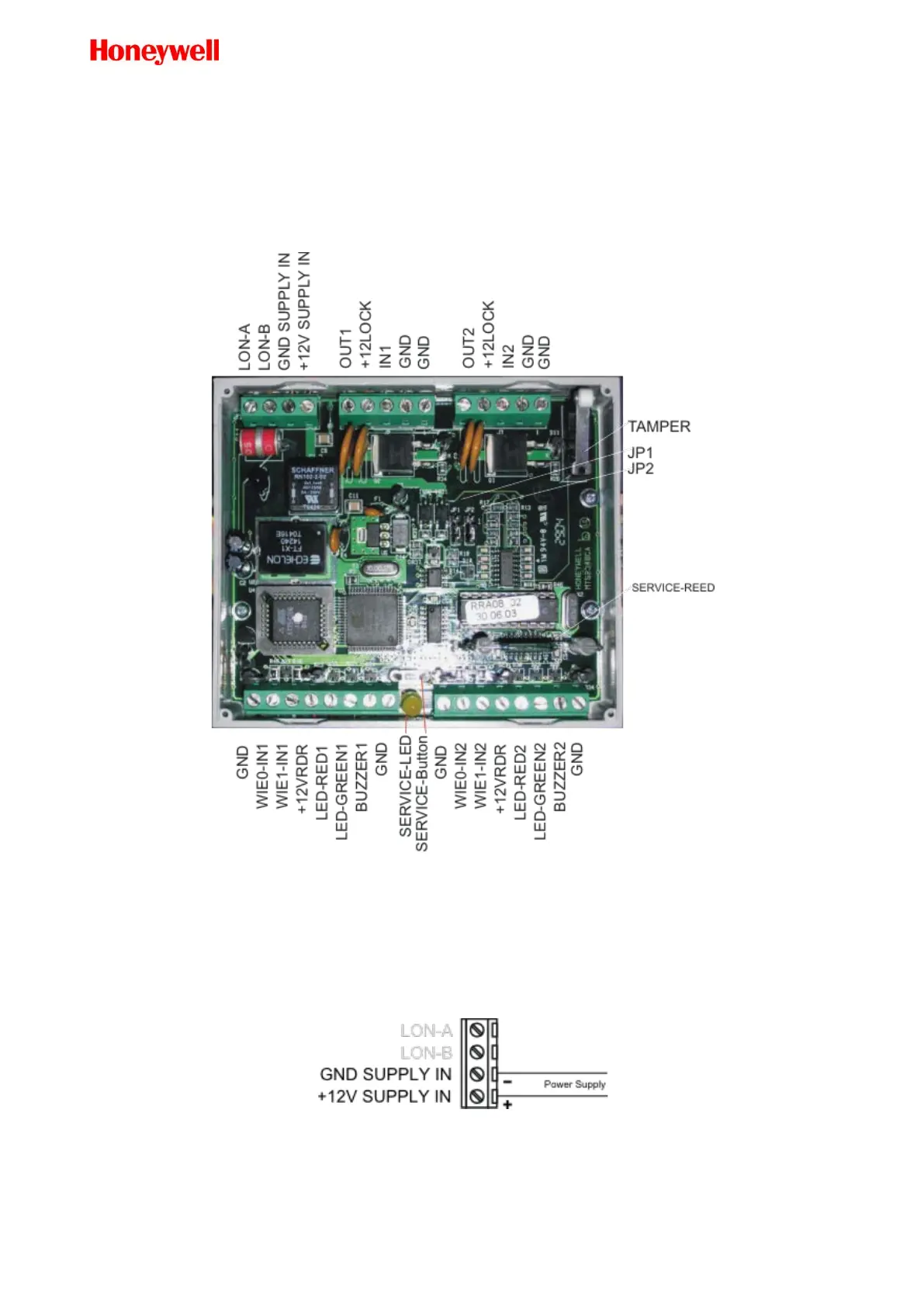

Figure 12 shows a detail of the electronic board, including the positions of the main connectors and service
elements.
Figure 5. Elemental Detail
Connection of power supply cables
The RTU A08 device must be powered with a 12V DC power supply. To determine the correct size of the
power cable please refer to Table 1. Length/Capacity of Power Cables (m)Table 1.
Figure 6 Power Supply connection
Connection of the Lonwork cables
