Sensing and Internet of Things 7
Sensor Evaluation Kit, SEK001
for Use with RSC, HSC, and SSC Series
Issue B
32324959
Table 5. Measurement Screen Functions for HSC, SSC Series Only
Function Description
Input Panel:
Temperature
Pressure
#Samples to Avg.
Auto Range
Selects the desired graph parameters. Click on the “Play”
button after making a selection to restart the evaluation.
Displays °C or °F of the sensor’s ASIC.
Displays the sensor’s pressure.
Select from the given number.
Select to automatically adjust to keep trace on screen.
Play/Pause
Starts/pauses the LIVE STREAMING function. Also used
to restart an evaluation after changing any Input Panel
characteristics.
Record
Records the measurements in a .cvs file in Excel for
offline analysis.
Restart Resets the time line to 0 sec.
Snap Shot Saves a screenshot to a selected folder.
Saved Snaps Path Opens the folder of recent file clips and snap shots.
Captured File Clips Displays/provides access to recent .cvs files in Excel.
Part
Displays the part number of the sensor currently being
evaluated.
Serial Not displayed.
4.21 Measurement Screen (see Figures 6, 7 and Table 5)
4.2 Measurement Screens

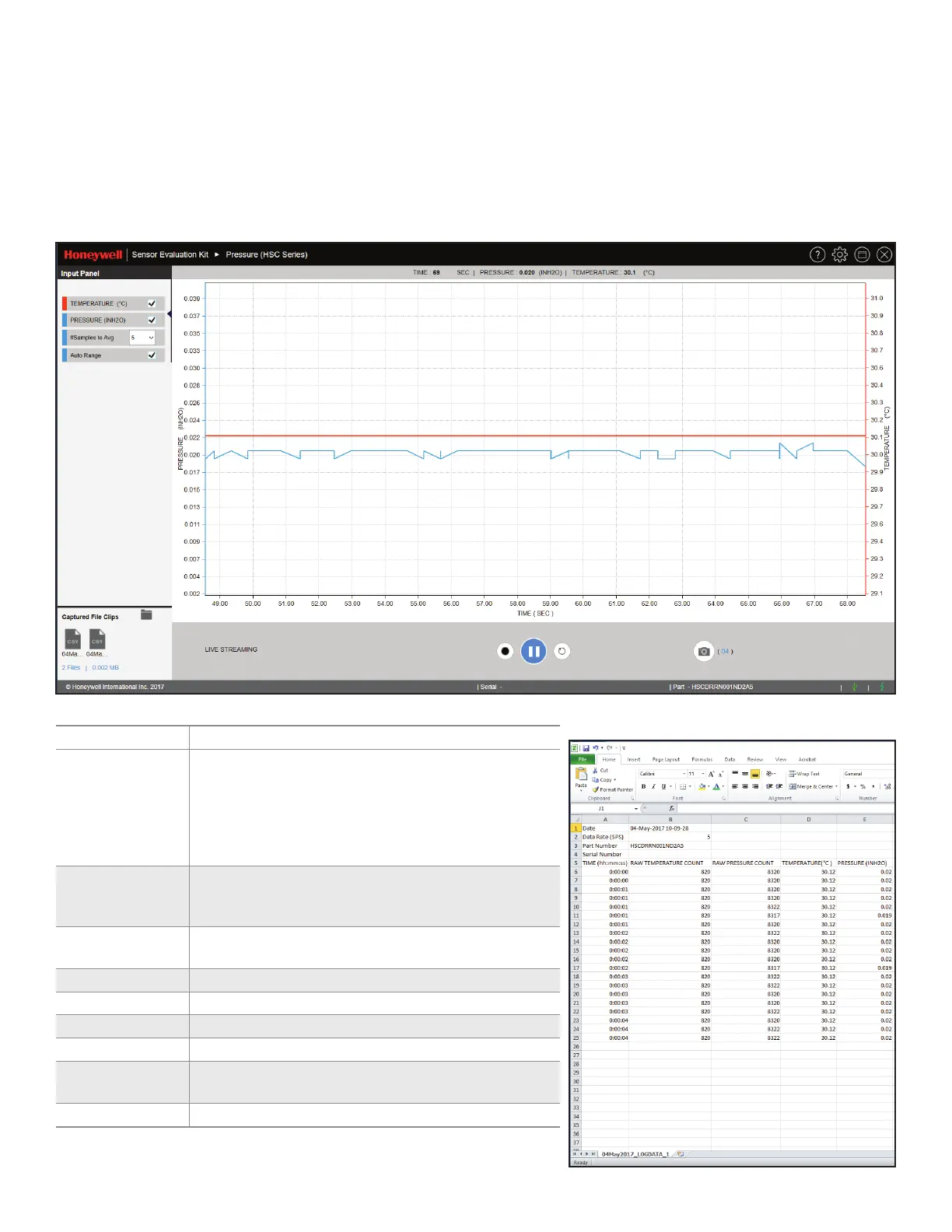

Figure 6. Measurement Screen for HSC, SSC Series Only
Figure 7. Captured File Clip Sample for HSC,
SSC Series Only
