Honeywell T6 Pro Z-Wave Professional Install Guide

3

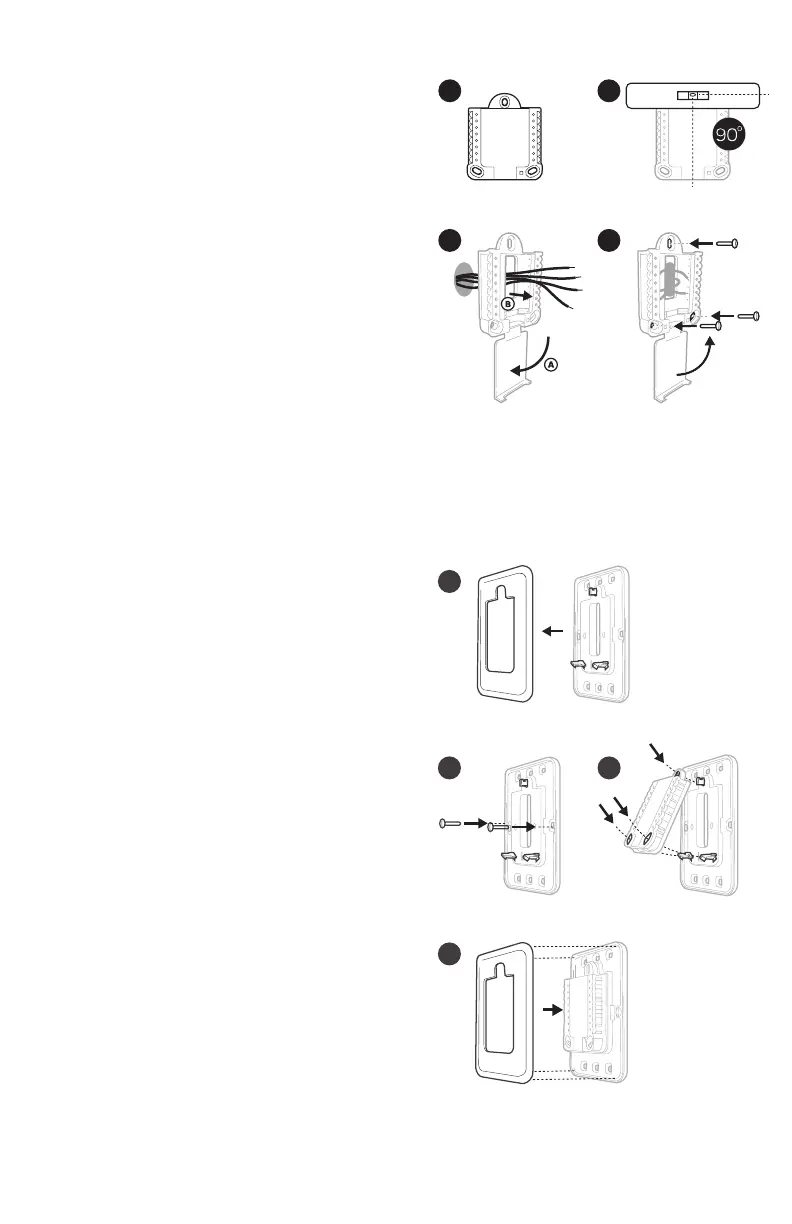

UWP Mounting System installation
1. Open package to find the UWP. See
Figure 1.
2. Position the UWP on the wall. Level and
mark hole positions. See Figure 2.
Drill holes at marked positions, and
then lightly tap supplied wall anchors
into wall using a hammer.
‒ Drill 7/32” holes for drywall.
3. Pull the door open and insert wires
through wiring hole of the UWP. See
Figure 3.
4. Place the UWP over the wall anchors.
Insert and tighten mounting screws
supplied with the UWP. Do not
overtighten. Tighten until the UWP
no longer moves. Close the door. See
Figure 4.
1
2
3
4
Optional Decorative Cover Plate installation
Use the Optional Cover Plate when:
• Mounting the thermostat to an
electrical junction box
• Or when you need to cover paint gap
from the old thermostat.
5. Separate the Junction Box Adapter
from the Cover Plate. See Figure 5.
6. Mount the Junction Box Adapter to
the wall or an electrical box using any
of the eight screw holes. Insert and
tighten mounting screws supplied with
Cover Plate Kit. Do not overtighten.
Make sure the Adapter Plate is level.
See Figure 6.
7. Attach the UWP by hanging it on the
top hook of the Junction Box Adapter
and then snapping the bottom of the
UWP in place. See Figure 7.
8. Snap the Cover Plate onto the
Junction Box Adapter. See Figure 8.
Use 3x supplied
screws #8 11/2”
Use 2x
supplied
screws
#6 5/8”
1/4” to 3/8”
1
2
3 4
1 2
3
4
8
7
6
5

Honeywell T6 Pro Z-Wave Specifications

General

Model	T6 Pro Z-Wave
Connectivity	Z-Wave
Display	Backlit LCD
Power Source	24 VAC
Compatibility	Z-Wave certified, works with most Z-Wave hubs
Temperature Control	± 1°F
Thermostat Type	Programmable
Programmability	7-day
Stages	Up to 2 Heat/2 Cool
Operating Temperature	32°F to 120°F (0°C to 48.9°C)
Humidity Range	5% to 90% RH, non-condensing
