Package Includes
T6 Pro Thermostat
UWP Mounting System
Honeywell Standard Installation Adapter (J-box adapter)
Honeywell Decorative Cover Plate –Small; size 4-49/64 in x 4-49/64 in x11/32 in (121 mm x 121
mm x 9 mm)
Screws and anchors
2 AA Batteries
Installation Instructions and User Guide
Optional Cover Plate installation
NOTE: If Optional Cover Plate is not required, see “UWP Mounting System installation” on next page.
Use the Optional Cover Plate when:
Mounting the thermostat to an electrical junction box
Or when you need to cover paint gap from old thermostat.

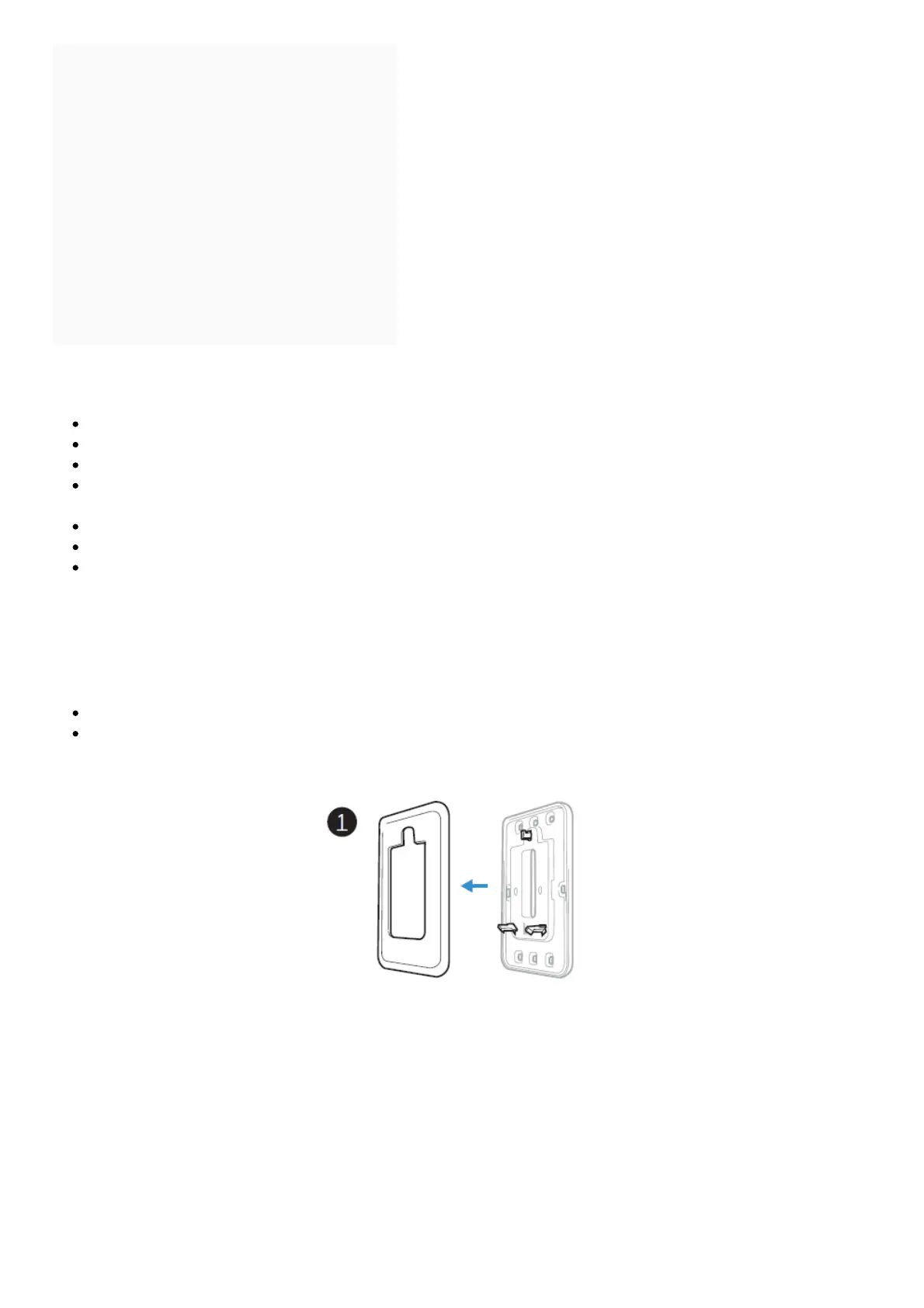

1. Separate the Junction Box Adapter from the Cover Plate. See Figure 1.
2. Mount the Junction Box Adapter to the wall or an electrical box using any of the eight screw holes.
Insert and tighten mounting screws supplied with Cover Plate Kit. Do not overtighten. See Figure 2.
Make sure the Adapter Plate is level.
3. Attach the UWP by hanging it on the top hook of the Junction Box Adapter and then snapping the
bottom of the UWP in place. See Figure 3.
To Next Page
