T7047C,G ELECTRONIC THERMOSTATS AND REMOTE SPACE SENSORS
3 62-3050—3

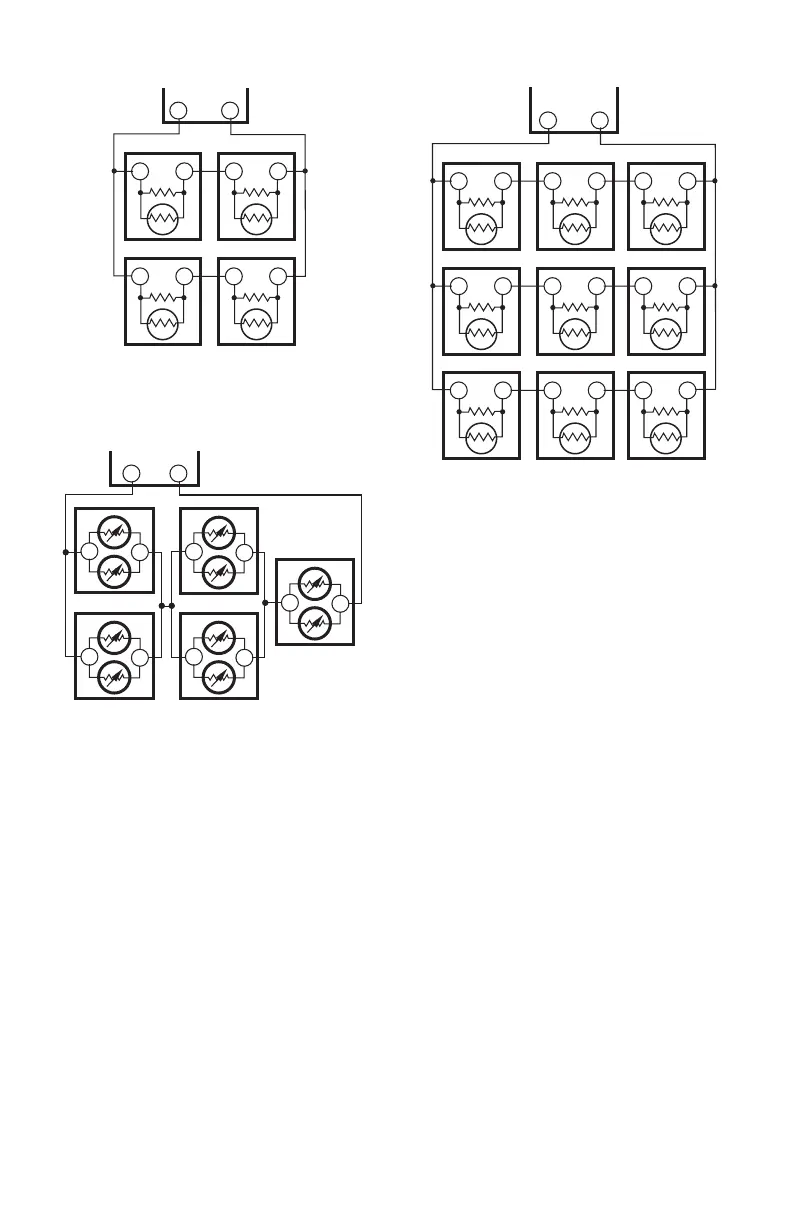

Fig. 5. Four T7047C Sensors providing a
temperature-averaging network for a T7100/Q7100
or T7300/Q7300 Thermostat/Subbase.
Fig. 6. Five T7047G Sensors providing a
temperature-averaging network for a T7100/Q7100
or T7300/Q7300 Thermostat/Subbase.
Fig. 7. Nine T7047C Sensors providing a temperature-
averaging network for a T7100/Q7100
or T7300/Q7300 Thermostat/Subbase.
M3420
T T
TT
Q7300
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
M3422
TT
Q7300
T
T
T7047G
T
T
T7047G
T
T
T7047G
T
T
T7047G
T
T
T7047G
M3419
T T
TT
Q7300
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
T
T
T7047C
